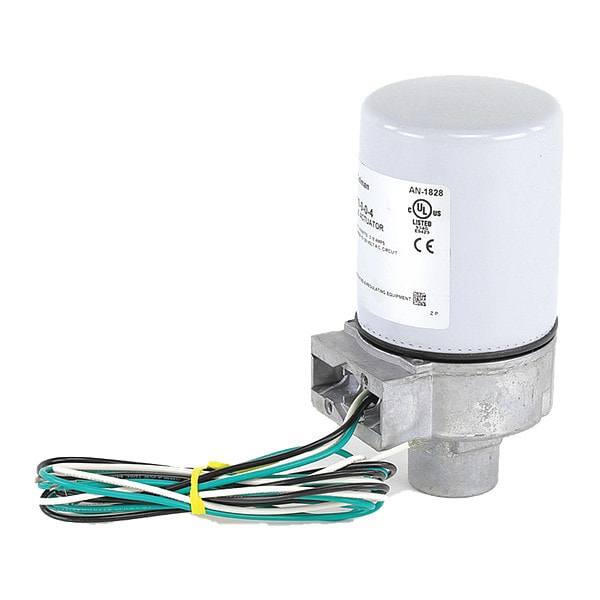

Electric Actuator, 120V, 2-Position
Mfr # MA-5210
Zoro # G2085750
product price:Â $1,302.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
Dampers, Valves
For Use With Mfr. Model Number
VA-7211-211-3-9
Includes
Spring Return
Input Voltage
120V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MA-5210
- Zoro #
- G2085750
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Overall Depth
- 3 3/4 in
- Overall Width
- 3 1/4 in
- Overall Height
- 6 3/4 in
Details
- Fits Brand
- Schneider Electric
- Application
- Dampers, Valves
- Item
- Actuator
- For Use With Mfr. Model Number
- VA-7211-211-3-9
- Includes
- Spring Return
- Input Voltage
- 120V AC
- Standards
- CE, CSA, UL Listed
- Product Type
- Actuator
- Power Consumption
- 18 VA
- Maximum Operating Temperature
- 140 Degrees F
- Contact Form
- SPST
- Stroke Degree
- 60 Degrees ; 90 Degrees
- Power Rating
- 14W
- Valve Application
- Damper and Valve
- Minimum Operating Temperature
- 0 Degrees F
- NEMA Rating
- 1
- Time to Open
- 60 sec
- Electrical Connection Type
- Hardwired
- Spring Return
- Spring Return
- Housing Material
- Steel
- Shaft Rotation
- CW/CCW
Description
Actuator, Valve Application Damper and Valve, Input Voltage 120V AC, Contact Form SPST, Electrical Connection Type Hardwired, NEMA Rating 1, Spring Return Spring Return, Shaft Rotation CW/CCW, Stroke Degree 60 Degrees ; 90 Degrees , Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 0 Degrees F, Overall Width 3 1/4 in, Application Dampers, Valves
