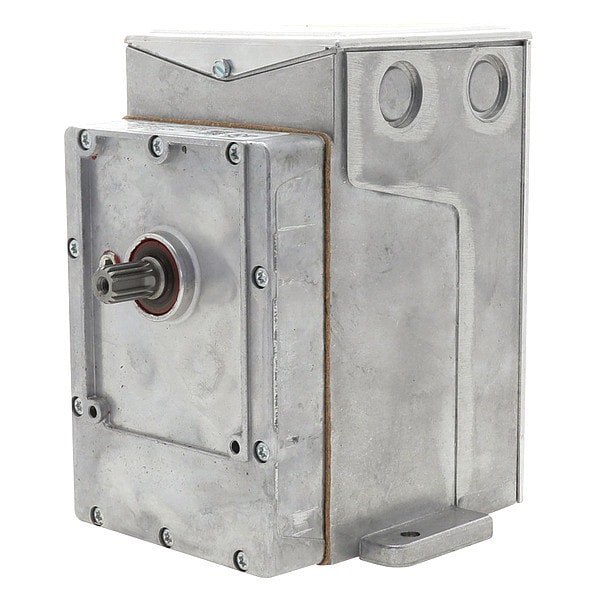

Electric Actuator, 120V, 80 to 800 sec.
Mfr # MP-452
Zoro # G2086161
product price:Â
$
2,535.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
HVAC Systems, Dampers, Valves, Ventilation Flaps
Includes
Switch
Input Voltage
120V
Standards
CE, CSA, UL Listed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MP-452
- Zoro #
- G2086161
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Overall Depth
- 6 3/8 in
- Overall Width
- 5 3/8 in
- Overall Height
- 7 in
Details
- Fits Brand
- Schneider Electric
- Application
- HVAC Systems, Dampers, Valves, Ventilation Flaps
- Item
- Actuator
- Includes
- Switch
- Input Voltage
- 120V
- Standards
- CE, CSA, UL Listed
- Product Type
- Actuator
- Valve Application
- Damper and Valve
- Rated Torque
- 220 lb-in
- Full Load Current
- 0.6 A
- Spring Return
- Non-Spring Return
- Stroke Degree
- 180 Degrees
- Time to Close
- 50 sec
- Signal Type
- Proportional
- Contact Form
- SPDT
- Minimum Operating Temperature
- -40 Degrees F
- Time to Open
- 50 sec
- NEMA Rating
- 4
- Electrical Connection Type
- Screw Terminals
- Maximum Operating Temperature
- 136 Degrees F
Description
Actuator, Valve Application Damper and Valve, Signal Type Proportional, Rated Torque 220 lb-in, Input Voltage 120V, Contact Form SPDT, Electrical Connection Type Screw Terminals, NEMA Rating 4, Spring Return Non-Spring Return, Time to Close 50 sec, Stroke Degree 180 Degrees , Maximum Operating Temperature 136 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 5 3/8 in, Application HVAC Systems, Dampers, Valves, Ventilation Flaps
