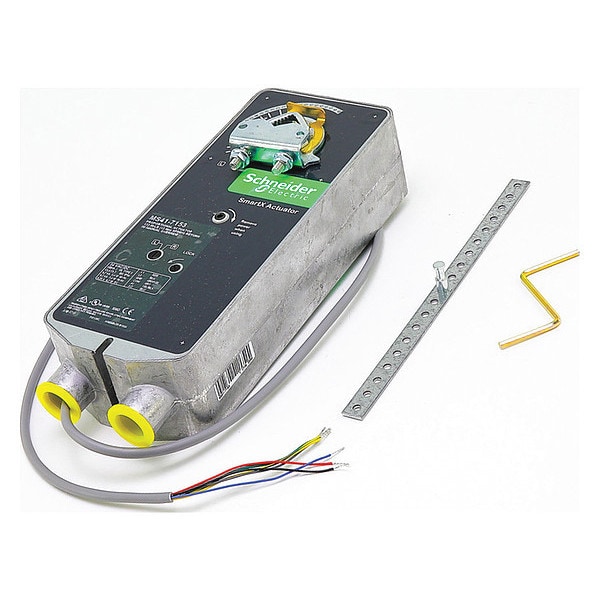

Electric Actuator, 24V, 133 lb.-in.
Mfr # MS41-7153
Zoro # G2086511
product price:Â
$
600.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
Dampers, Valves
For Use With Mfr. Model Number
VS-7213-556-4-11
Includes
Spring Return
Input Voltage
22 to 30V DC, 24V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MS41-7153
- Zoro #
- G2086511
- UPC #
- -
- Country of Origin
- Mexico
- Fits Brand
- Schneider Electric
- Application
- Dampers, Valves
- Item
- Actuator
- For Use With Mfr. Model Number
- VS-7213-556-4-11
- Includes
- Spring Return
- Input Voltage
- 22 to 30V DC, 24V AC
- Standards
- CE, CUL, UL 873, UL Listed
- Product Type
- Actuator
- Power Rating
- 7.4W
- Minimum Operating Temperature
- -22 Degrees F
- NEMA Rating
- 4
- Full Load Current
- 0.2 A
- Maximum Operating Temperature
- 140 Degrees F
- Valve Application
- Damper and Valve
- Shaft Rotation
- CW/CCW
- IP Rating
- IP54
- Electrical Connection Type
- Hardwired
- Rated Torque
- 350 lb-in
- Output Signal
- 2 to 10V DC
- Power Consumption
- 9.8 VA
- Stroke Degree
- 95 +/- 5 Degrees
- Spring Return
- Spring Return
- Signal Type
- Proportional
Description
Actuator, Valve Application Damper and Valve, Signal Type Proportional, Rated Torque 350 lb-in, Input Voltage 22 to 30V DC, 24V AC, Output Signal 2 to 10V DC, Electrical Connection Type Hardwired, NEMA Rating 4, IP Rating IP54, Spring Return Spring Return, Shaft Rotation CW/CCW, Stroke Degree 95 +/- 5 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -22 Degrees F, Overall Width 4 in, Application Dampers, Valves
