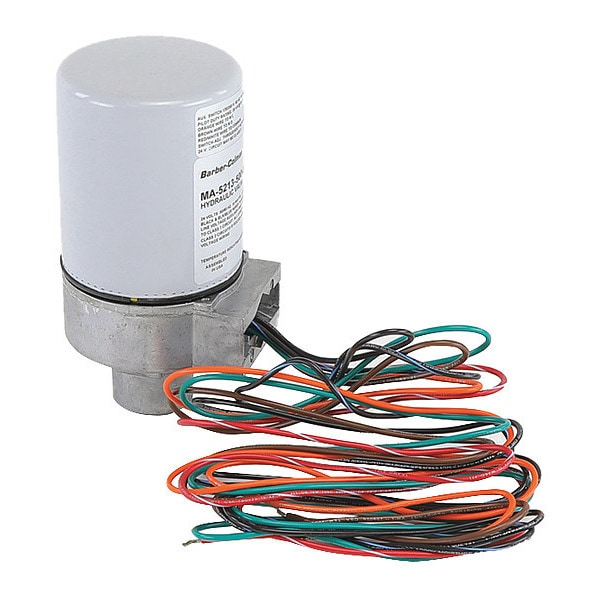

Electric Actuator, 24V, 2-Position
Mfr # MA-5213-500
Zoro # G2085638
original price:Â $1,619.99 , new price: $1,467.99 , 9 percent off
new price:Â
$
1,467.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
Dampers, Valves
Includes
Switch
Standards
CE, CSA, UL Listed
Input Voltage
24V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MA-5213-500
- Zoro #
- G2085638
- UPC #
- -
- Country of Origin
- Mexico
- Fits Brand
- Schneider Electric
- Application
- Dampers, Valves
- Item
- Actuator
- Includes
- Switch
- Standards
- CE, CSA, UL Listed
- Input Voltage
- 24V AC
- Product Type
- Actuator
- Full Load Current
- 10 A
- Spring Return
- Spring Return
- Maximum Operating Temperature
- 140 Degrees F
- Electrical Connection Type
- Hardwired
- Output Signal
- 1 Auxiliary Switch
- Contact Form
- SPDT
- Valve Application
- Damper and Valve
- Housing Material
- Steel
- Power Consumption
- 18 VA
- Time to Open
- 60 sec
- Power Rating
- 14W
- Minimum Operating Temperature
- 0 Degrees F
- Stroke Degree
- 60 Degrees ; 90 Degrees
- NEMA Rating
- 1
- Shaft Rotation
- CW/CCW
Description
Actuator, Valve Application Damper and Valve, Input Voltage 24V AC, Output Signal 1 Auxiliary Switch, Contact Form SPDT, Electrical Connection Type Hardwired, NEMA Rating 1, Spring Return Spring Return, Shaft Rotation CW/CCW, Stroke Degree 60 Degrees ; 90 Degrees , Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 0 Degrees F, Overall Width 3 1/4 in, Application Dampers, Valves
