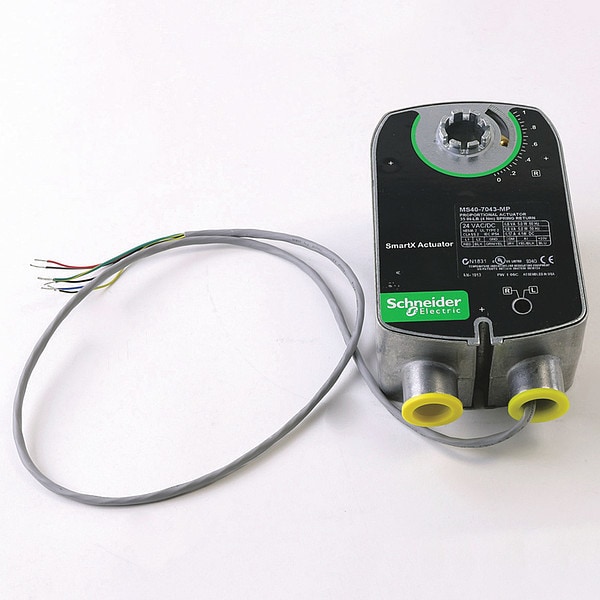

Electric Actuator, 24V, 6 to 9VDC, DCA
- Mfr # MS40-7043-MP
- Zoro # G2086651
product price:Â
$
346.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
Dampers, Valves
For Use With Mfr. Model Number
VS-7223-538-4-9
Input Voltage
22 to 30V DC, 24V AC
Standards
CE, CUL, UL 873, UL Listed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MS40-7043-MP
- Zoro #
- G2086651
- UPC #
- -
- Country of Origin
- Mexico
- Fits Brand
- Schneider Electric
- Application
- Dampers, Valves
- Item
- Actuator
- For Use With Mfr. Model Number
- VS-7223-538-4-9
- Input Voltage
- 22 to 30V DC, 24V AC
- Standards
- CE, CUL, UL 873, UL Listed
- Product Type
- Actuator
- Maximum Operating Temperature
- 140 Degrees F
- Signal Type
- Proportional
- IP Rating
- IP54
- Valve Application
- Damper and Valve
- Power Consumption
- 6.6 VA
- Output Signal
- 20V DC
- Power Rating
- 5W
- NEMA Rating
- 2
- Shaft Rotation
- CW/CCW
- Minimum Operating Temperature
- -22 Degrees F
- Spring Return
- Spring Return
- Full Load Current
- 0.1 A
- Rated Torque
- 150 lb-in
- Stroke Degree
- 40 Degrees ; 95 Degrees
- Electrical Connection Type
- Hardwired
Dimensions
- Overall Height
- 3 1/2 in
- Overall Depth
- 6 3/4 in
- Overall Width
- 4 in
Description
Actuator, Valve Application Damper and Valve, Signal Type Proportional, Rated Torque 150 lb-in, Input Voltage 22 to 30V DC, 24V AC, Output Signal 20V DC, Electrical Connection Type Hardwired, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Shaft Rotation CW/CCW, Stroke Degree 40 Degrees ; 95 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -22 Degrees F, Overall Width 4 in, Application Dampers, Valves
