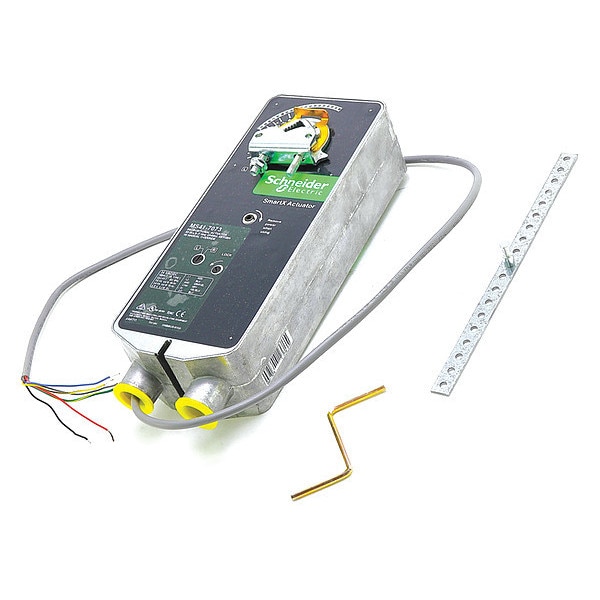

Electric Actuator, 24V, 60 lb.-in.

Mfr # MS41-7073
Zoro # G2086478

603.99

Free Shipping & Returns

Key Features

Fits Brand

Schneider Electric

Application

Dampers, Valves

For Use With Mfr. Model Number

VS-7213-546-4-10

Includes

Direct Mount, Spring Return

Standards

CE, CUL, UL 873, UL Listed

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: MS41-7073
Zoro #: G2086478
UPC #: -
Country of Origin: Mexico

Dimensions

Overall Depth: 10 1/2 in
Overall Width: 4 in
Overall Height: 3 1/2 in

Details

Fits Brand: Schneider Electric
Application: Dampers, Valves
Item: Actuator
For Use With Mfr. Model Number: VS-7213-546-4-10
Includes: Direct Mount, Spring Return
Standards: CE, CUL, UL 873, UL Listed
Input Voltage: 22 to 30V DC, 24V AC
Product Type: Actuator
Stroke Degree: 95 +/- 5 Degrees
Minimum Operating Temperature: -22 Degrees F
Spring Return: Spring Return
Output Signal: 2 to 10V DC
NEMA Rating: 4
Rated Torque: 250 lb-in
Valve Application: Damper and Valve
Maximum Operating Temperature: 140 Degrees F
IP Rating: IP54
Power Rating: 4.6W
Signal Type: Proportional
Electrical Connection Type: Hardwired
Power Consumption: 5.8 VA
Shaft Rotation: CW/CCW
Full Load Current: 0.1 A

Description

Actuator, Valve Application Damper and Valve, Signal Type Proportional, Rated Torque 250 lb-in, Input Voltage 22 to 30V DC, 24V AC, Output Signal 2 to 10V DC, Electrical Connection Type Hardwired, NEMA Rating 4, IP Rating IP54, Spring Return Spring Return, Shaft Rotation CW/CCW, Stroke Degree 95 +/- 5 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -22 Degrees F, Overall Width 4 in, Application Dampers, Valves
