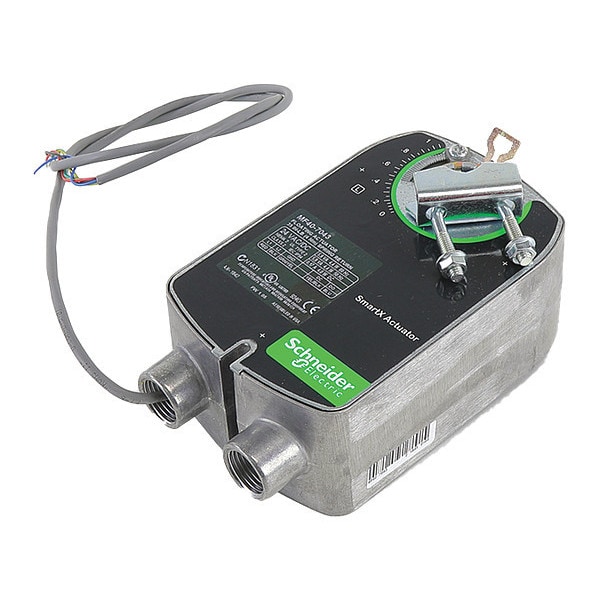

Electric Actuator, 24V, Floating, 35 lb.-in
Mfr # MF40-7043
Zoro # G2086143
product price:Â
$
409.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
Dampers, Valves
Includes
Direct Mount, Spring Return
For Use With Mfr. Model Number
VF-2213-536-9-17
Standards
CE, cULus
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MF40-7043
- Zoro #
- G2086143
- UPC #
- -
- Country of Origin
- Mexico
- Fits Brand
- Schneider Electric
- Application
- Dampers, Valves
- Item
- Actuator
- Includes
- Direct Mount, Spring Return
- For Use With Mfr. Model Number
- VF-2213-536-9-17
- Standards
- CE, cULus
- Input Voltage
- 22 to 30V DC, 24V AC
- Product Type
- Actuator
- Maximum Operating Temperature
- 140 Degrees F
- Full Load Current
- 0.17 mA
- IP Rating
- IP54
- Spring Return
- Spring Return
- Power Consumption
- 5.9 VA
- Stroke Degree
- 95 Degrees
- Rated Torque
- 150 lb-in
- Plenum Rating
- Plenum Rated
- Minimum Operating Temperature
- -22 Degrees F
- Electrical Connection Type
- Hardwired
- Signal Type
- Floating Point
- Shaft Type
- 5/8" Round
- Power Rating
- 4.4W
- NEMA Rating
- 2
- Valve Application
- Damper and Valve
- Shaft Rotation
- CW/CCW
Description
Actuator, Valve Application Damper and Valve, Signal Type Floating Point, Rated Torque 150 lb-in, Input Voltage 22 to 30V DC, 24V AC, Electrical Connection Type Hardwired, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Shaft Type 5/8 In. Round, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -22 Degrees F, Overall Width 4 in, For Shaft Diameter 5/8 in, Application Dampers, Valves
