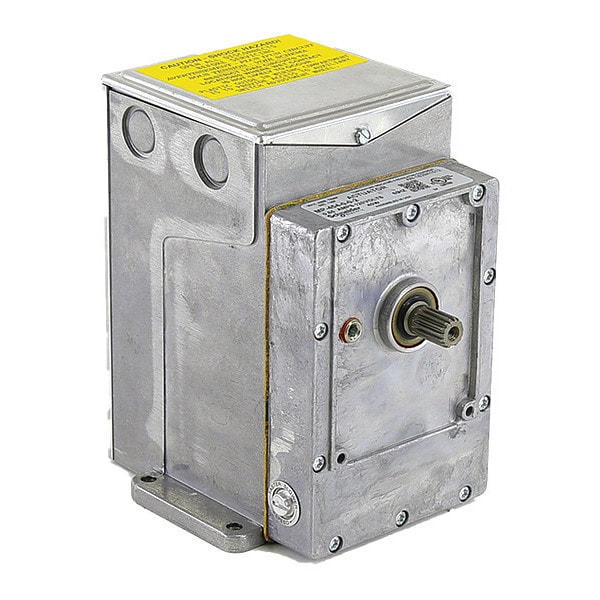

Electric Actuator, 40 to 400 sec. Timing
Mfr # MP-454
Zoro # G2086100
product price:Â
$
2,681.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
HVAC Systems, Dampers, Valves, Ventilation Flaps
For Use With Mfr. Model Number
EA55
Standards
CE, CSA, UL Listed
Input Voltage
120V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MP-454
- Zoro #
- G2086100
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Overall Height
- 7 in
- Overall Width
- 5 3/8 in
- Overall Depth
- 6 3/8 in
Details
- Fits Brand
- Schneider Electric
- Application
- HVAC Systems, Dampers, Valves, Ventilation Flaps
- Item
- Actuator
- For Use With Mfr. Model Number
- EA55
- Standards
- CE, CSA, UL Listed
- Input Voltage
- 120V
- Product Type
- Actuator
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 136 Degrees F
- Signal Type
- Proportional
- NEMA Rating
- 4
- Rated Torque
- 220 lb-in
- Full Load Current
- 0.6 A
- Electrical Connection Type
- Screw Terminals
- Time to Close
- 50 sec
- Time to Open
- 50 sec
- Contact Form
- SPDT
- Stroke Degree
- 90 Degrees
- Spring Return
- Non-Spring Return
- Valve Application
- Damper and Valve
Description
Actuator, Valve Application Damper and Valve, Signal Type Proportional, Rated Torque 220 lb-in, Input Voltage 120V, Contact Form SPDT, Electrical Connection Type Screw Terminals, NEMA Rating 4, Spring Return Non-Spring Return, Time to Close 50 sec, Stroke Degree 90 Degrees , Maximum Operating Temperature 136 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 5 3/8 in, Application HVAC Systems, Dampers, Valves, Ventilation Flaps
