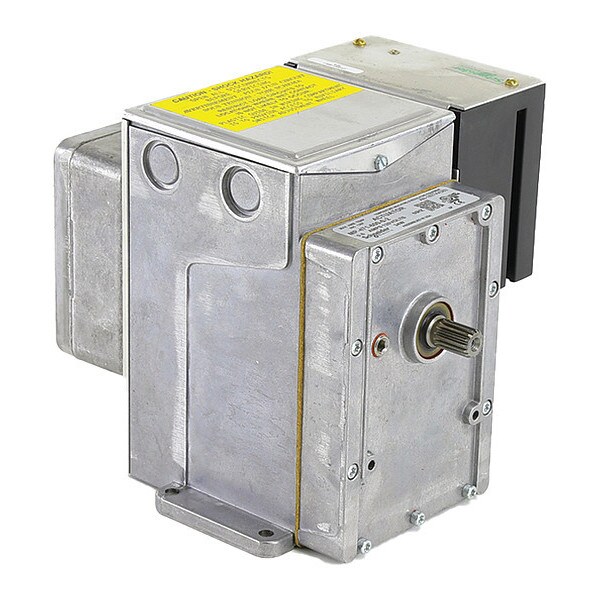

Electric Actuator Drive, 120V, 90 sec.
Mfr # MP-471-600
Zoro # G2086487
product price:Â
$
3,073.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
HVAC Systems, Dampers, Valves, Ventilation Flaps
For Use With Mfr. Model Number
VS-7213-312-4-10
Includes
CP-8301-120 Drive
Input Voltage
120V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MP-471-600
- Zoro #
- G2086487
- UPC #
- -
- Country of Origin
- Mexico
- Fits Brand
- Schneider Electric
- Application
- HVAC Systems, Dampers, Valves, Ventilation Flaps
- Item
- Actuator
- For Use With Mfr. Model Number
- VS-7213-312-4-10
- Includes
- CP-8301-120 Drive
- Input Voltage
- 120V
- Standards
- CSA, UL Listed
- Product Type
- Actuator
- Time to Open
- 50 sec
- Spring Return
- Spring Return
- Minimum Operating Temperature
- -40 Degrees F
- Shaft Rotation
- CCW
- Signal Type
- Proportional
- Stroke Degree
- 180 Degrees
- Maximum Operating Temperature
- 136 Degrees F
- Valve Application
- Damper and Valve
- Electrical Connection Type
- Screw Terminals
- NEMA Rating
- 1
- Contact Form
- SPDT
- Rated Torque
- 50 lb-in
- Time to Close
- 50 sec
- Full Load Current
- 0.5 A
Description
Actuator, Valve Application Damper and Valve, Signal Type Proportional, Rated Torque 50 lb-in, Input Voltage 120V, Contact Form SPDT, Electrical Connection Type Screw Terminals, NEMA Rating 1, Spring Return Spring Return, Time to Close 50 sec, Shaft Rotation CCW, Stroke Degree 180 Degrees , Maximum Operating Temperature 136 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 5 3/8 in, Application HVAC Systems, Dampers, Valves, Ventilation Flaps
