Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, Germanischer Lloyd (GL), IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Basic Material
Plastic
Color
Red
Contact Rating
10A @ 600V AC
Contact Form
1NC
Material
Plastic
Bezel
Plastic
IP Rating
IP66, IP67, IP69, IP69K
Number of Operators
1
Type of Operator
40mm Mushroom Head
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
NEMA Contact Rating Designation
A600/Q600
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Bezel Material
Plastic
Series
XB5
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type
Emergency Stop Push Buttons
Overvoltage Category
class II IEC 60536
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Positive Opening
with EN/IEC 60947-5-1 appendix K
Protective Treatment
TH
Product Certifications
GL || LROS (Lloyds register of shipping) || DNV || UL Listed || CSA || BV
Reset
turn to release
Fixing Collar Material
plastic
Ambient Air Temperature For Operation
-40-70°C
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Contacts Usage
standard contacts
Shape Of Signaling Unit Head
round
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Mechanical Durability
300000 cycles
Contacts Material
silver alloy (Ag/Ni)
Tightening Torque
0.8-1.2 N.m EN 60947-1
Ik Degree Of Protection
IK03 IEC 50102
Terminals Description Iso N°1
(11-12)NC
Head Type
standard
Operator Profile
red mushroom Ø 40 mm, unmarked
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Contact Operation
slow-break
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Product Or Component Type
emergency switching off push-button || emergency stop push-button
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Device Presentation
complete product
Operating Travel
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Device Short Name
XB5
Terminals Description Iso N°1
(11-12)NC
Operating Temperature - Minimum
-40 Degrees F
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
13, 4X
Resistance Properties
Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material
Plastic
Operator Voltage Rating - Maximum
600 V AC/DC
Mechanical Operating Durability
3.00 x 10^5
Description

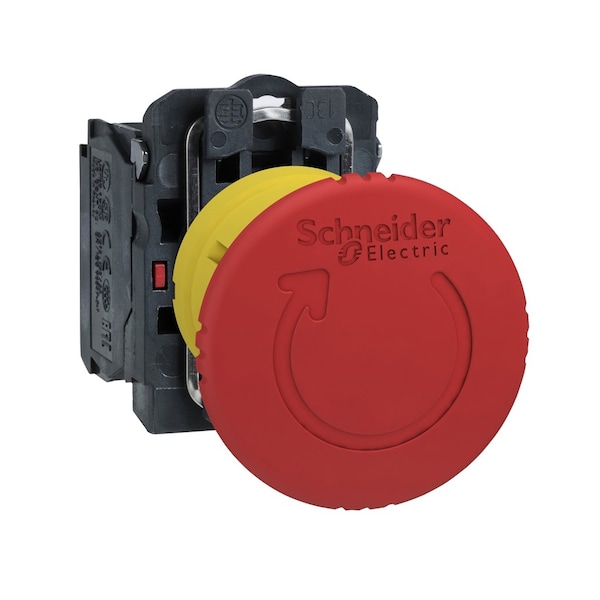

Emergency Stop Push Button, 22 mm, Maintained Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Plastic, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable
