  13. Emergency Stop Push Button, 22 mm, 1NO/1NC, Red
Shop All Push Button Switches
Schneider Electric

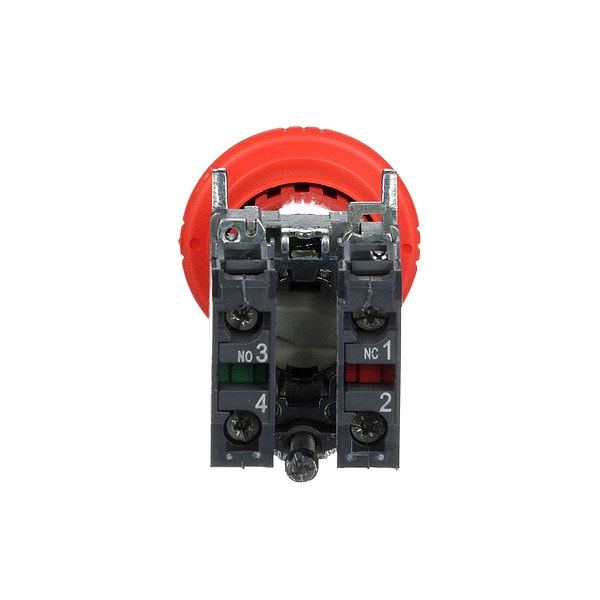

Emergency Stop Push Button, 22 mm, 1NO/1NC, Red

product price: $141.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Action Maintained
  • Size 22 mm
  • Head Material Metal
  • NEMA Rating 1, 12, 13, 2, 3, 4, 4X
  • Type of Operator 40mm Mushroom Head
See all product information

Product Information

Dimensions

Size 22 mm
Height 47 mm
Width 40 mm
Depth 82 mm
Mounting Diameter 22 mm
Manufacturer Warranty Length 18 mo
Overall Height 1.85 in
Overall Width 1.57 in
Panel Cutout Diameter 22 mm
Mushroom Head Diameter 40 mm
Overall Depth 3.23 in

Details

Action Maintained
Head Material Metal
NEMA Rating 1, 12, 13, 2, 3, 4, 4X
Type of Operator 40mm Mushroom Head
Color Red
Contact Form 1NO/1NC
Bezel Chrome Plated Zinc Die Cast
Number of Operators 1
Contact Rating 10A @ 600V AC
Item Emergency Stop Push Button
Bezel Material Chrome
Standards Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, Germanischer Lloyd (GL), IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Material metal
Basic Material Metal
IP Rating IP66, IP67, IP69, IP69K
Terminal Connection Screw Clamp
Series XB4
Features For High Power Applications, For Low Load Electrical Contact Applications
AC Contact Rating 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Product Type Emergency Stop Push Buttons
Shape Of Signaling Unit Head round
Contacts Usage standard contacts
Resistance To High Pressure Washer 7000000 Pa 55°C 0.1 m
Device Short Name XB4
Contacts Material silver alloy (Ag/Ni)
Ambient Air Temperature For Storage -40-70°C
Fixing Collar Material zamak
Positive Opening with EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
Tightening Torque 0.8-1.2 N.m EN 60947-1
[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
Reset turn to release
Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Electrical Reliability Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Mechanical Durability 300000 cycles
Product Certifications BV || GL || LROS (Lloyds register of shipping) || DNV || CSA || UL Listed
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Product Or Component Type emergency switching off push-button || emergency stop push-button
Protective Treatment TH
Ik Degree Of Protection IK06 IEC 50102
Device Presentation complete product
Electrical Shock Protection Class class I IEC 60536
Nema Degree Of Protection NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation -40-70°C
Operating Travel 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Operating Force 44 N
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K
Operator Profile red mushroom Ø 40 mm, unmarked
Head Type standard
Contact Operation slow-break
[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1
Terminals Description Iso N°1 (13-14)NO
Connections - Terminals screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Conventional Free Air Thermal Current 10 A IEC 60947-5-1
Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Rated Operational Current 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Rated Insulation Voltage 600 V 3)IEC 60947-1
Terminals Description Iso N°1 (13-14)NO
Operating Temperature - Minimum -40 Degrees F
Operating Temperature - Maximum 158 Degrees F
Operator Illumination Non-Illuminated
Mechanical Operating Durability 3.00 x 10^5
Head Color Red
Maintained Action Release Twist
Push Button Style Mushroom Head
Number of Indicator Lights 0
Operator Voltage Rating - Maximum 600 V AC/DC
NEMA Enclosure Rating 13, 4X
Operator Material Metal

Description

Emergency Stop Push Button, 22 mm, Maintained Action, 40mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable
