  15. Emergency Stop Push Button, 22 mm, 1NO/1NC, Red

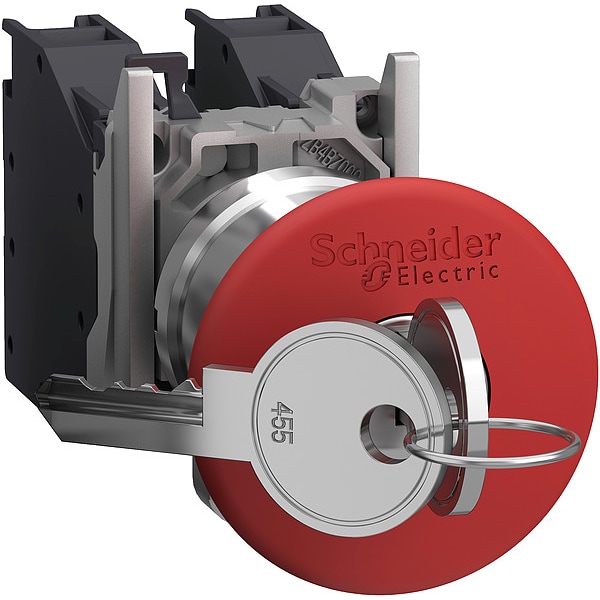

Schneider Electric Emergency Stop Push Button, 22 mm, 1NO/1NC, Red XB4BS9445GEX - main

Emergency Stop Push Button, 22 mm, 1NO/1NC, Red

  • Mfr # XB4BS9445GEX

  • Zoro # G0200754

product price: $278.99
/ea
Item requires special delivery charges. A $60.00 per item surcharge will be applied.

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Key
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4BS9445GEX
Zoro #
G0200754
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Height
30 mm
Width
46.2 mm
Depth
119.5 mm
Size
22 mm
Mounting Diameter
22 mm
Embedding Depth
58 mm

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Key
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
ANSI/ISA, CSA, IEC, UL Listed
Features
Designed for Explosive Atmosphere
Basic Material
Metal
Series
XB4
Contact Form
1NO/1NC
Position
2
Type of Operator
Push Button
Color
Red
Bezel Material
Metal
IP Rating
IP65
Key Removal
Center
Contact Rating
1.9 A @ 380 V AC, 3 A @ 240 V AC, 6 A @ 120 V AC, 0.27 A @ 250 V DC, 0.55 A @ 125 V DC, 2.87 A @ 24 V DC
Safety Rating
ANSI/ISA 12.12.01, CSA C22.2 No 213, EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-7:2009, EN/IEC 60079-31:2009, UL 60079-0, UL 60079-1, UL 60079-31
Operator Head Material
Metal
Product Type
Emergency Stop Push Buttons
Number of Operators
1
Number of Indicator Lights
0
Product Or Component Type
complete emergency stop push-button
Gas Zone
zone 1 - 2
Ambient Air Temperature For Operation
-20-65°C
Contacts Usage
standard
Connections - Terminals
screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1
Conventional Free Air Thermal Current
10 A IEC 60947-5-1
[Ui] Rated Insulation Voltage
415 V
Ambient Air Temperature For Storage
-40-70°C
Key Withdrawal Position
center
Contact Operation
slow-break
[Ie] Rated Operational Current
1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1
Shape Of Signaling Unit Head
round
Reset
key release
Contacts Type And Composition
1 NO + 1 NC
Dust Zone
zone 21 - 22
Ip Degree Of Protection
IP65 IEC 60529
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Tightening Torque
0.8-1.2 N.m EN 60947-1
Positive Opening
with EN/IEC 60947-5-1 appendix K
Protective Treatment
TH
Key Number
455
Rated Operational Current
1.9 A 380 V, AC, A600 IEC 60947-5-1; 3 A 240 V, AC, A600 IEC 60947-5-1; 6 A 120 V, AC, A600 IEC 60947-5-1; 0.27 A 250 V, DC, Q300 IEC 60947-5-1; 0.55 A 125 V, DC, Q300 IEC 60947-5-1; 2.87 A 24 V, DC, Q300 IEC 60947-5-1
Mechanical Durability
5000000 cycles
Fixing Center
>= 30 x 40 mm support panel) 1-6 mm
Operator Profile
red mushroom Ø 40 mm
Fixing Collar Material
zamak
Product Certifications
INERIS 04ATEX9004U
Device Short Name
XB4
Marking
II 2 GD || Ex tb IIIC Db || Ex db eb IIC Gb
Device Mounting
fixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1

Description

Emergency Stop Push Button, 22 mm, Maintained Action, Push Button Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Color Red, Contact Rating 1.9 A @ 380 V AC, 3 A @ 240 V AC, 6 A @ 120 V AC, 0.27 A @ 250 V DC, 0.55 A @ 125 V DC, 2.87 A @ 24 V DC, Number of Operators 1, IP Rating IP65, Standards ANSI/ISA, CSA, IEC, UL Listed, Features Designed for Explosive Atmosphere
