Shop SCHNEIDER ELECTRIC

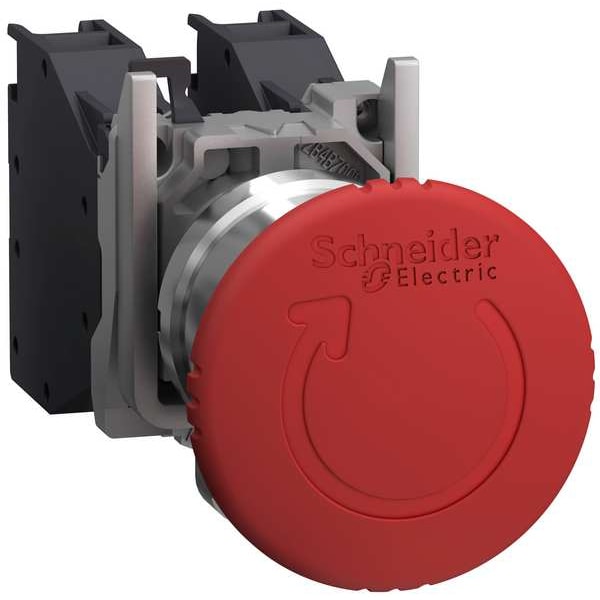

Emergency Stop Push Button, 22mm, 1NO/1NC, Red

  • Mfr # XB4BS8445GEX

  • Zoro # G3463985

product price:  $208.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary Pull / Maintained Push
Maintained Action Release
Twist
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XB4BS8445GEX
Zoro #
G3463985
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Depth
119.5 mm
Size
22mm
Height
30 mm
Width
46.2 mm
Embedding Depth
58 mm
Mounting Diameter
22 mm

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Momentary Pull / Maintained Push
Maintained Action Release
Twist
Operator Illumination
Non-Illuminated
Head Color
Red
Terminal Connection
Screw Clamp
Standards
ANSI/ISA 12.12.01, CSA C22.2 No.213, EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-31:2009, EN/IEC 60079-7:2009, UL 60079-0, UL 60079-1, UL 60079-31
Color
Red
Contact Form
1NO/1NC
Safety Rating
Class 1 Div 2, Class 2 Div 2, Class 3
Bezel
Chrome Plated Metal
Number of Operators
1
IP Rating
IP65
Contact Rating
1.9 A @ 380V AC, 3 A @ 240V AC, 6 A @ 120V AC, 0.27 A @ 250V DC, 0.55 A @ 125V DC, 2.87 A @ 24V DC
Type of Operator
40 mm Mushroom Head
Bezel Material
Chrome
Protective Treatment
TH
Product Or Component Type
complete emergency stop push-button
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Fixing Collar Material
zamak
Device Mounting
fixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
Product Certifications
INERIS 04ATEX9004U
Fixing Center
>= 30 x 40 mm support panel) 1-6 mm
[Ui] Rated Insulation Voltage
415 V
Marking
Ex tb IIIC Db || Ex db eb IIC Gb || II 2 GD
Reset
turn to release
Gas Zone
zone 1 - 2
Contact Operation
slow-break
Dust Zone
zone 21 - 22
Operator Profile
red mushroom Ø 40 mm
Ambient Air Temperature For Storage
-40-70°C
Connections - Terminals
screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1
Contacts Usage
standard
Device Short Name
XB4
[Ie] Rated Operational Current
1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1
Positive Opening
with EN/IEC 60947-5-1 appendix K
Shape Of Signaling Unit Head
round
Mechanical Durability
5000000 cycles
Ambient Air Temperature For Operation
-20-65°C
Tightening Torque
0.8-1.2 N.m EN 60947-1
Contacts Type And Composition
1 NO + 1 NC
Ip Degree Of Protection
IP65 IEC 60529
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Product Type
Emergency Stop Push Buttons

Description

Emergency Stop Push Button, 22mm, 40 mm Mushroom Head Type of Operator, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color Red, Contact Rating 1.9 A @ 380V AC, 3 A @ 240V AC, 6 A @ 120V AC, 0.27 A @ 250V DC, 0.55 A @ 125V DC, 2.87 A @ 24V DC, Number of Operators 1, IP Rating IP65, Legend Not Applicable, Standards ANSI/ISA 12.12.01, CSA C22.2 No.213, EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-31:2009, EN/IEC 60079-7:2009, UL 60079-0, UL 60079-1, UL 60079-31

Documents & Resources

Restrictions

WARNING: This product can expose you to chemicals including Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
