  15. Emergency Stop Push Button, 22mm, 1NO/1NC, Red

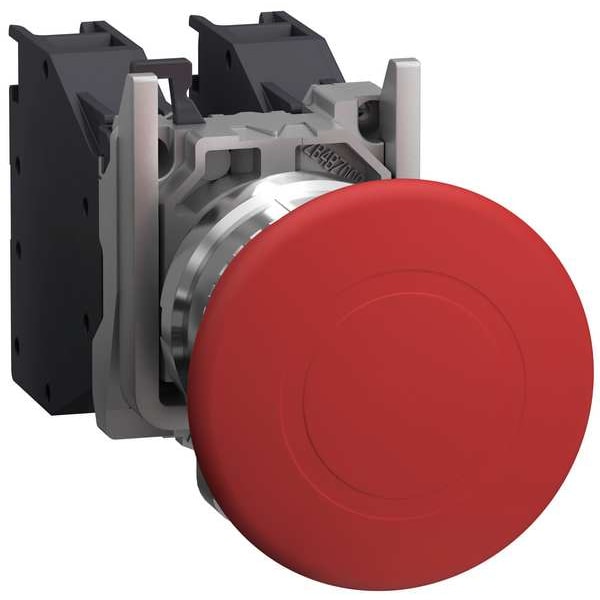

Schneider Electric Emergency Stop Push Button, 22mm, 1NO/1NC, Red XB4BT845GEX - main

Emergency Stop Push Button, 22mm, 1NO/1NC, Red

  • Mfr # XB4BT845GEX

  • Zoro # G3457378

product price: $204.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Panel Cutout Diameter
22 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4BT845GEX
Zoro #
G3457378
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Height
30 mm
Depth
96.5 mm
Width
46.2 mm
Size
22mm
Mounting Diameter
22 mm
Embedding Depth
58 mm

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Head Color
Red
Terminal Connection
Screw Clamp
Standards
ANSI/ISA 12.12.01, CSA C22.2 No.213, EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-31:2009, EN/IEC 60079-7:2009, UL 60079-0, UL 60079-1, UL 60079-31
IP Rating
IP65
Type of Operator
40 mm Mushroom Head
Safety Rating
Class 1 Div 2, Class 2 Div 2, Class 3
Number of Operators
1
Bezel
Chrome Plated Metal
Contact Form
1NO/1NC
Bezel Material
Chrome
Color
Red
Contact Rating
1.9 A @ 380V AC, 3 A @ 240V AC, 6 A @ 120V AC, 0.27 A @ 250V DC, 0.55 A @ 125V DC, 2.87 A @ 24V DC
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Product Type
Emergency Stop Push Buttons
Mechanical Durability
5000000 cycles
Product Or Component Type
complete emergency stop push-button
Contacts Usage
standard
Fixing Collar Material
zamak
Tightening Torque
0.8-1.2 N.m EN 60947-1
[Ui] Rated Insulation Voltage
415 V
Ambient Air Temperature For Storage
-40-70°C
Positive Opening
with EN/IEC 60947-5-1 appendix K
Dust Zone
zone 21 - 22
Device Short Name
XB4
Operator Profile
red mushroom Ø 40 mm
Ip Degree Of Protection
IP65 IEC 60529
Contacts Type And Composition
1 NO + 1 NC
Protective Treatment
TH
Fixing Center
>= 30 x 40 mm support panel) 1-6 mm
Ambient Air Temperature For Operation
-20-65°C
Gas Zone
zone 1 - 2
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Connections - Terminals
screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1
Product Certifications
INERIS 04ATEX9004U
Reset
push-pull
Contact Operation
slow-break
Shape Of Signaling Unit Head
round
[Ie] Rated Operational Current
1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1
Device Mounting
fixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
Marking
II 2 GD || Ex tb IIIC Db || Ex db eb IIC Gb

Description

Emergency Stop Push Button, 22mm, Maintained/Maintained Action, 40 mm Mushroom Head Type of Operator, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color Red, Contact Rating 1.9 A @ 380V AC, 3 A @ 240V AC, 6 A @ 120V AC, 0.27 A @ 250V DC, 0.55 A @ 125V DC, 2.87 A @ 24V DC, Number of Operators 1, IP Rating IP65, Legend Not Applicable
