  15. Emergency Stop Push Button, 30 mm, SPDT, Red

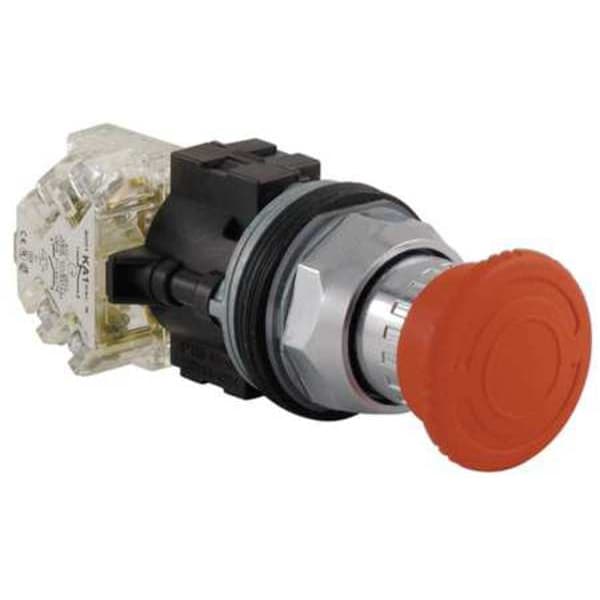

Schneider Electric Emergency Stop Push Button, 30 mm, SPDT, Red 9001KR16H13 - main

Emergency Stop Push Button, 30 mm, SPDT, Red

  • Mfr # 9001KR16H13

  • Zoro # G4636037

product price: $160.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KR16H13
Zoro #
G4636037
UPC #
785901578819
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
40 mm
Size
30 mm
Mounting Diameter
30 mm
Cad Overall Width
40 mm
Cad Overall Depth
116 mm
Cad Overall Height
40 mm
Manufacturer Warranty Length
18 mo
Overall Width
1.57 in
Overall Depth
4.57 in
Overall Height
1.57 in

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Twist
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Type of Operator
40mm Mushroom Head
Number of Operators
1
Contact Form
SPDT
Basic Material
Metal
Bezel
Chrome Plated Zinc Die Cast
Material
metal
Color
Red
Contact Rating
10A @ 600V AC
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
IP Rating
IP66
Bezel Material
Metal
Features
Self-Grounding, Finger-Safe Terminals
Series
9001K
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Product Type
Emergency Stop Push Buttons
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Ambient Air Temperature For Operation
-25-70°C
Short-Circuit Protection
10 A cartridge fuse EN/IEC 60947-5-1
Device Presentation
complete product
Product Certifications
NEMA || UL 508
Operator Position Information
2 positions
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Product Or Component Type
emergency stop push-button
[Ith] Conventional Free Air Thermal Current
10 A
Contacts Type And Composition
1 C/O
Device Short Name
9001K
Operator Profile
mushroom Ø 40 mm, red mushroom Ø 40 mm, unmarked
Ip Degree Of Protection
IP66 IEC 60529
Contacts Material
silver alloy contacts
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-1
Mechanical Durability
5000000 cycles
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Shock Resistance
50 gn IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Shape Of Signaling Unit Head
round
Connections - Terminals
screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
Overvoltage Category
class II IEC 61140
Protective Treatment
TC
Rated Breaking Capacity
3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Tightening Torque
0.8-0.8 N.m EN/IEC 60947-1
Cap/Operator Or Lens Colour
red
[Icm] Rated Short-Circuit Making Capacity
12 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Shape Of Screw Head
cross slotted
Operating Position
any position
Operator Voltage Rating - Maximum
600 V AC
Number of Indicator Lights
0
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Mechanical Operating Durability
5.00 x 10^6
Operating Temperature - Minimum
-13 Degrees F
Operator Material
Plastic
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6

Description

Emergency Stop Push Button, 30 mm, Maintained Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
