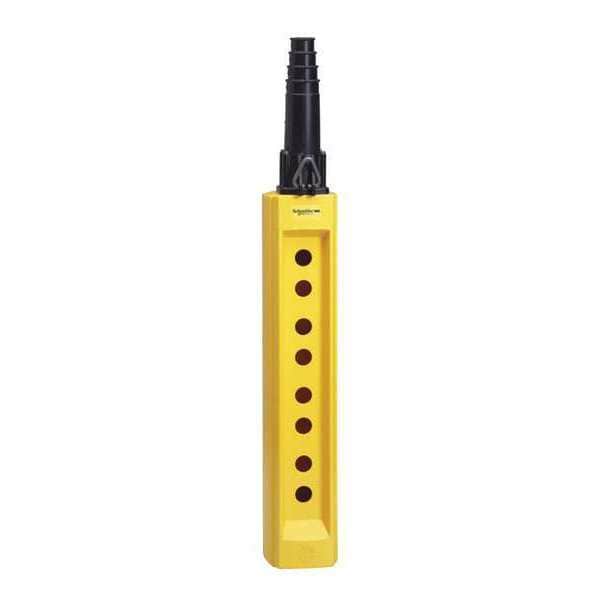

Empty pendant control station, Harmony XAC, plastic, yellow, 8 cut outs, for cable 10.22mm
Mfr # XACB08
Zoro # G0862088
product price:Â $403.99
/ea
Free Shipping & Returns
Key Features
Standards
EN/IEC 60947-5-1 || CSA C22.2 No 14
Enclosure Material
glass reinforced polyester
Protective Treatment
TH
Ik Degree Of Protection
IK08 EN 50102
Control Station Colour
yellow
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- XACB08
- Zoro #
- G0862088
- UPC #
- 785901640547
- Country of Origin
- Czechia
Details
- Item
- 8 Button Pendant W/O Ko In Base
- Standards
- EN/IEC 60947-5-1 || CSA C22.2 No 14
- Enclosure Material
- glass reinforced polyester
- Protective Treatment
- TH
- Ik Degree Of Protection
- IK08 EN 50102
- Control Station Colour
- yellow
- Electrical Circuit Type
- power circuit || control circuit
- Control Station Type
- double insulated
- Device Short Name
- XACB
- Product Certifications
- CSA type 4
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Number Of Cut-Out
- 8 cut-outs
- Mechanical Durability
- 1000000 cycles
- Cable Entry
- rubber sleeve with stepped entry 10-22 mm
- Ambient Air Temperature For Operation
- -25-70°C
- Product Or Component Type
- pendant control station
- Shock Resistance
- 100 gn IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70°C
- Enclosure Type
- empty enclosure
- Vertical Operator Cut-Out Centre
- 40 mm
- Overvoltage Category
- class II IEC 61140
- Guard Rail
- Without
- Range of Product
- Harmony XAC
Description
8 Button Pendant W/O Ko In Base
