Item

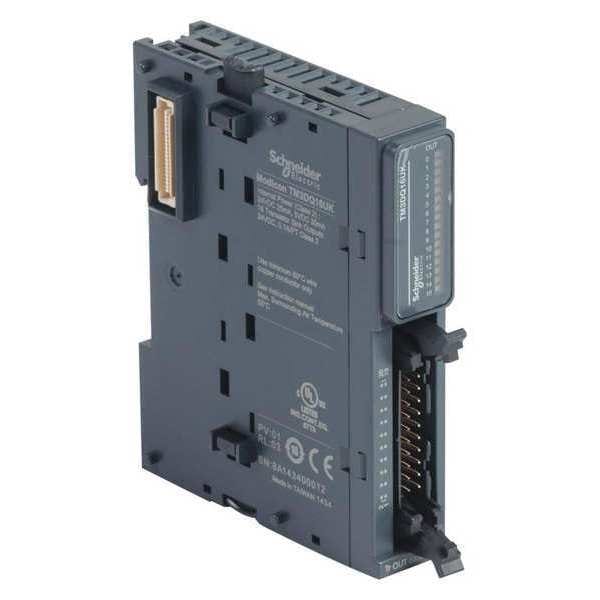

Discrete Output Module
For Use With
Modicon Mfr. No.M221 PLC
Features
Plate or Panel with Fixing Kit
Product Type
Discrete Output Module
Output Type
(16) Transistor
Standards
EN/IEC 61131-2 || EN/IEC 61010-2-201
Discrete Output Number
16
Discrete Output Logic
negative logic (sink)
Electromagnetic Emission
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Vibration Resistance
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Local Signalling
for output status 1 LED per channel (green)
Resistance To Electromagnetic Fields
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
Maximum Leakage Current
0.1 mA transistor output
Resistance To Fast Transients
1 kV I/OEN/IEC 61000-4-4
Range Compatibility
Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
Resistance To Electrostatic Discharge
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Discrete Output Voltage
24 V DC transistor output
Operating Altitude
0 to 6561.68 ft (0 to 2000 m)
Product Or Component Type
discrete output module
Mounting Support
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Maximum Cable Distance Between Devices
unshielded cable <5 m transistor output
Discrete Output Current
100 mA transistor output
Insulation
between output and internal logic 500 V AC || non-insulated between outputs
Resistance To Conducted Disturbances
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Ambient Air Temperature For Storage
-25-70°C
Electrical Connection
HE-10 connector for outputs
Resistance To Magnetic Fields
30 A/m 50/60 Hz EN/IEC 61000-4-8
Storage Altitude
0-3000 m
Surge Withstand
1 kV I/O common mode EN/IEC 61000-4-5 DC
Product Certifications
C-tick || cULus
Current Consumption
5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 15 mA 5 V DC via bus connector at state on) || 20 mA 24 V DC via bus connector at state on)
Response Time
450µs (turn-on) || 450µs (turn-off)
Maximum Voltage Drop
<0.4 V
Discrete Output Type
transistor
Relative Humidity
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Shock Resistance
15 gn 11 ms
Ip Degree Of Protection
IP20 with protective cover in place
Ambient Air Temperature For Operation
-10-35°C vertical installation || -10-55°C horizontal installation
Compatible Product Type
Programmable Logic Controllers
Compatible with Brand
Schneider
Output Circuit Voltage - Maximum
24 V DC
Compatible with Series
Modicon, M221, M241, M251, M262
Output Circuit Current - Maximum
100 mA
