10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs and supply || 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs
Operating Altitude
0 to 6561.68 ft (0 to 2000 m)
Shock Resistance
15 gn 11 ms
Current Consumption
45 mA 5 V DC via bus connector || 50 mA 5 V DC via bus connector || 35 mA 24 V DC via external supply || 40 mA 24 V DC via external supply
Marking
CE
Local Signalling
for PWR 1 LED (green)
Insulation
between input and supply 1500 V AC || between input and internal logic 500 V AC
Lsb Value
2.44 mV 0 to 10 V voltage || 4.88 mV - 10 to 10 V voltage || 4.88µA 0 to 20 mA current || 3.91µA 4 to 20 mA current || 0.1°C temperature probe || 0.1°C thermocouple
Resistance To Conducted Disturbances
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Permissible Continuous Overload
13 V voltage || 40 mA current
Ambient Air Temperature For Storage
-25-70°C
Immunity To Microbreaks
10 ms
[Us] Rated Supply Voltage
24 V DC
Non-Linearity
+/- 0.2 %FS
Temperature Drift
+/- 0.01 %FS/°C
Vibration Resistance
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
Analogue Input Number
4
Absolute Accuracy Error
+/- 0.2 % of full scale at 25°C for analogue input voltage/current || +/- 0.2 % of full scale at 25°C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe || +/- 0.2 % of full scale at 25°C for thermocouple C 0 to 2315°C || +/- 6°C at 25°C for thermocouple R, S 0 to 200°C || +/- 0.2 % of full scale at 25°C for thermocouple R, S 200 to 1760°C || +/- 0.2 % of full scale at 25°C for thermocouple B 300 to 1820°C || +/- 0.4 % of full scale at 25°C for thermocouple K - 200 to 0°C || +/- 0.2 % of full scale at 25°C for thermocouple K 0 to 1300°C || +/- 0.4 % of full scale at 25°C for thermocouple J - 200 to 0°C || +/- 0.2 % of full scale at 25°C for thermocouple J 0 to 1000°C || +/- 0.4 % of full scale at 25°C for thermocouple E - 200 to 0°C || +/- 0.2 % of full scale at 25°C for thermocouple E 0 to 800°C || +/- 0.4 % of full scale at 25°C for thermocouple T - 200 to 0°C || +/- 0.2 % of full scale at 25°C for thermocouple T 0 to 400°C || +/- 0.4 % of full scale at 25°C for thermocouple N - 200 to 0°C || +/- 0.2 % of full scale at 25°C for thermocouple N 0 to 1300°C
Sampling Duration
10 ms voltage/current || 100 ms voltage/current || 100 ms thermocouple || 100 ms temperature probe
Analogue Input Resolution
16 bits || 15 bits + sign
Mounting Support
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Pollution Degree
2
Repeat Accuracy
+/-0.5 %FS
Storage Altitude
0-3000 m
Electromagnetic Emission
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Analogue Input Type
current 4 to 20 mA || current 0 to 20 mA || voltage 0 to 10 V || voltage - 10 to 10 V || thermocouple - 200 to 1000°C thermocouple J || thermocouple - 200 to 1300°C thermocouple K || thermocouple 0 to 1760°C thermocouple R || thermocouple 0 to 1760°C thermocouple S || thermocouple 0 to 1820°C thermocouple B || thermocouple - 200 to 400°C thermocouple T || thermocouple - 200 to 1300°C thermocouple N || thermocouple - 200 to 800°C thermocouple E || thermocouple 0 to 2315°C thermocouple C || Ni 100/Ni 1000 temperature probe - 60 to 180°C || Pt 100 temperature probe - 200 to 850°C || Pt 1000 temperature probe - 200 to 600°C
Ip Degree Of Protection
IP20
Input Impedance
<= 50 Ohm current || >= 1 MOhm voltage || >= 1 MOhm thermocouple || >= 1 MOhm temperature probe
Product Or Component Type
analog input module
Type Of Cable
twisted shielded pairs cable <30 m input
Resistance To Electromagnetic Fields
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Surge Withstand
1 kV power supply common mode EN/IEC 61000-4-5 || 0.5 kV power supply differential mode EN/IEC 61000-4-5 || 1 kV input common mode EN/IEC 61000-4-5
Conversion Time
100 ms + 100 ms per channel + 1 controller cycle time thermocouple || 100 ms + 100 ms per channel + 1 controller cycle time temperature probe || 10 ms + 10 ms per channel + 1 controller cycle time voltage/current
Relative Humidity
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

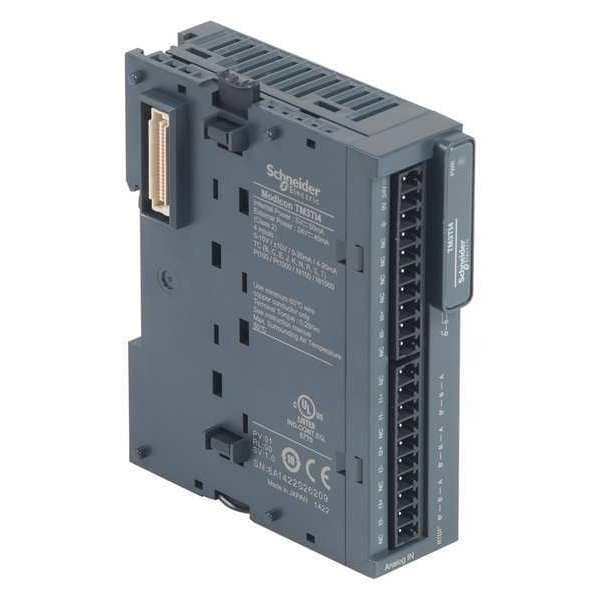

Analog Input Module, Number of Inputs 4, For Use With Modicon Mfr. No.M221 PLC, Number of Outputs 0, Includes Terminal Block, Power Required 24V DC, Features Capable of Controlling Variable Speed Drives, Product Type Extension Module, Current Rating 20 mA, Mounting Style Panel, Wire Connection Type Screw Clamp
