For Use With
Modicon Mfr. No.M221 PLC
Features
Capable of Controlling Variable Speed Drives

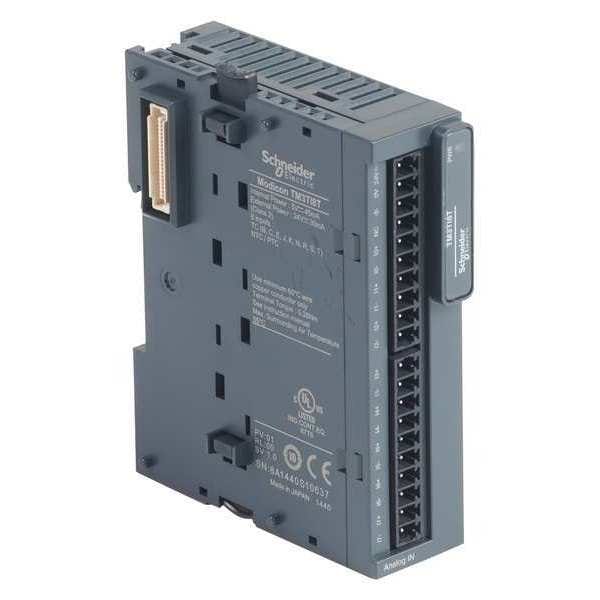

Product Type
Analog Input Module
Standards
EN/IEC 61010-2-201 || EN/IEC 61131-2
Resistance To Fast Transients
1 kV EN/IEC 61000-4-4 I/O)
Resistance To Magnetic Fields
30 A/m EN/IEC 61000-4-8
Current Consumption
30 mA 24 V DC via external supply || 45 mA 5 V DC via bus connector || 40 mA 5 V DC via bus connector
Mounting Support
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Surge Withstand
1 kV power supply common mode EN/IEC 61000-4-5 || 0.5 kV power supply differential mode EN/IEC 61000-4-5 || 1 kV input common mode EN/IEC 61000-4-5
Product Or Component Type
analog input module
Repeat Accuracy
+/-0.5 %FS
Ip Degree Of Protection
IP20
[Us] Rated Supply Voltage
24 V DC
Ambient Air Temperature For Storage
-25-70°C
Storage Altitude
0-3000 m
Analogue Input Resolution
16 bits || 15 bits + sign
Insulation
between input and supply 1500 V AC || between input and internal logic 500 V AC
Product Certifications
CE || UKCA || RCM || EAC || cULus
Range Compatibility
Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262
Lsb Value
0.1°C thermocouple || 0.1°C NTC || 1 Ohm PTC/NTC
Resistance To Electrostatic Discharge
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Supply Voltage Limits
20.4-28.8 V
Non-Linearity
+/- 0.2 %FS
Electromagnetic Emission
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Resistance To Electromagnetic Fields
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
Shock Resistance
15 gn 11 ms
Analogue Input Type
thermocouple - 200 to 1000°C thermocouple J || thermocouple - 200 to 1300°C thermocouple K || thermocouple 0 to 1760°C thermocouple R || thermocouple 0 to 1760°C thermocouple S || thermocouple 0 to 1820°C thermocouple B || thermocouple - 200 to 400°C thermocouple T || thermocouple - 200 to 1300°C thermocouple N || thermocouple - 200 to 800°C thermocouple E || thermocouple 0 to 2315°C thermocouple C || NTC 10k thermistor -90 to 150°C || PTC thermistor 100 to 10000 Ohm || thermocouple - 200 to 1000°C
Electrical Connection
10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs and supply || 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs
Immunity To Microbreaks
10 ms
Conversion Time
100 ms + 100 ms per channel + 1 controller cycle time
Temperature Drift
+/- 0.01 %FS/°C
Input Impedance
>= 1 MOhm thermocouple || >= 1 MOhm temperature probe || >= 1 MOhm thermistor
Relative Humidity
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Operating Altitude
0 to 6561.68 ft (0 to 2000 m)
Absolute Accuracy Error
+/- 0.2 % of full scale at 25°C for thermocouple C 0 to 2315°C || +/- 6°C at 25°C for thermocouple R, S 0 to 200°C || +/- 0.2 % of full scale at 25°C for thermocouple R, S 200 to 1760°C || +/- 0.2 % of full scale at 25°C for thermocouple B 300 to 1820°C || +/- 0.4 % of full scale at 25°C for thermocouple K - 200 to 0°C || +/- 0.2 % of full scale at 25°C for thermocouple K 0 to 1300°C || +/- 0.4 % of full scale at 25°C for thermocouple J - 200 to 0°C || +/- 0.2 % of full scale at 25°C for thermocouple J 0 to 1000°C || +/- 0.4 % of full scale at 25°C for thermocouple E - 200 to 0°C || +/- 0.2 % of full scale at 25°C for thermocouple E 0 to 800°C || +/- 0.4 % of full scale at 25°C for thermocouple T - 200 to 0°C || +/- 0.2 % of full scale at 25°C for thermocouple T 0 to 400°C || +/- 0.4 % of full scale at 25°C for thermocouple N - 200 to 0°C || +/- 0.2 % of full scale at 25°C for thermocouple N 0 to 1300°C
Ambient Air Temperature For Operation
-10-55°C horizontal installation || -10-35°C vertical installation
Local Signalling
for PWR 1 LED (green)
Resistance To Conducted Disturbances
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Vibration Resistance
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
Type Of Cable
twisted shielded pairs cable <30 m input
Compatible Product Type
Programmable Logic Controllers
Compatible with Series
Modicon, M221, M241, M251, M262
Wire Connection Type
Screw Clamp
Compatible with Brand
Schneider
