Item

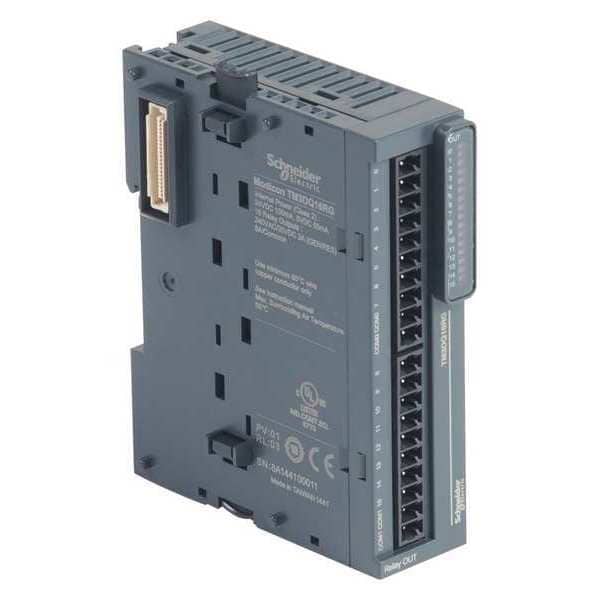

Discrete Output Module
For Use With
Modicon Mfr. No.M221 PLC
Features
Capable of Controlling Variable Speed Drives
Product Type
Discrete Output Module
Standards
EN/IEC 61131-2 || EN/IEC 61010-2-201
Resistance To Electromagnetic Fields
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
Vibration Resistance
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Surge Withstand
1 kV I/O common mode EN/IEC 61000-4-5 DC
Operating Altitude
0 to 6561.68 ft (0 to 2000 m)
Local Signalling
for output status 1 LED per channel (green)
Discrete Output Voltage
240 V AC relay output || 30 V DC relay output
Product Or Component Type
discrete output module
Shock Resistance
15 gn 11 ms
Current Consumption
0 mA 24 V DC via bus connector at state off) || 75 mA 24 V DC via bus connector at state on)
Mounting Support
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Maximum Cable Distance Between Devices
unshielded cable <30 m relay output
Resistance To Electrostatic Discharge
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Minimum Load
10 mA 5 V DC relay output
Discrete Output Type
relay normally open
Product Certifications
cULus || CE || UKCA || RCM || EAC
Ambient Air Temperature For Operation
-10-35°C vertical installation || -10-55°C horizontal installation
Discrete Output Logic
positive or negative
Storage Altitude
0-3000 m
Mechanical Durability
20000000 cycles
Resistance To Fast Transients
2 kV relay outputEN/IEC 61000-4-4
Range Compatibility
Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
Discrete Output Number
16
Response Time
10 ms (turn-on) || 5 ms (turn-off)
Ip Degree Of Protection
IP20 with protective cover in place
Ambient Air Temperature For Storage
-25-70°C
Resistance To Magnetic Fields
30 A/m 50/60 Hz EN/IEC 61000-4-8
Electrical Connection
10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for outputs
Insulation
between output and internal logic 2300 V AC || between outputs 750 V AC || between output groups 1500 V AC
Resistance To Conducted Disturbances
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Discrete Output Current
2000 mA relay output
Relative Humidity
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Electromagnetic Emission
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Compatible with Series
Modicon, M221, M241, M251, M262
Output Circuit Voltage - Maximum
30 V DC, 240 V AC
Compatible Product Type
Programmable Logic Controllers
Output Circuit Current - Maximum
2 A
Compatible with Brand
Schneider
