Item

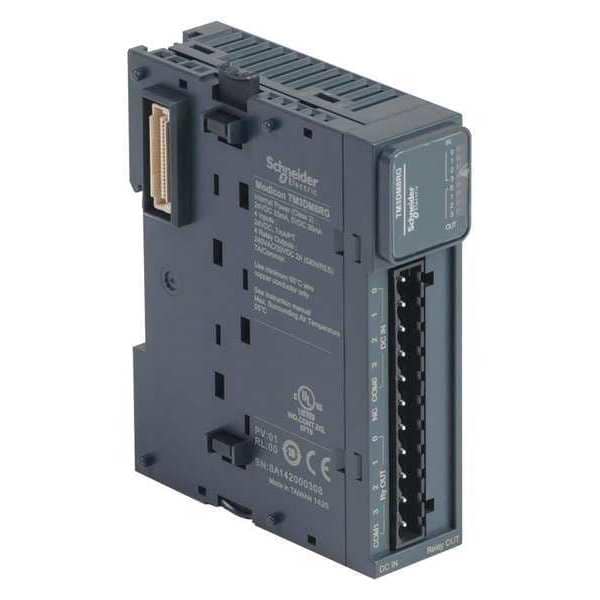

Discrete Input/Output Module
For Use With
Modicon Mfr. No.M221 PLC
Features
Capable of Controlling Variable Speed Drives
Product Type
Discrete Input/Output Module
Standards
EN/IEC 61010-2-201 || EN/IEC 61131-2
Product Or Component Type
discrete I/O module
Discrete Output Current
2000 mA relay output
Surge Withstand
2 kV output common mode EN/IEC 61000-4-5 || 1 kV input common mode EN/IEC 61000-4-5
Shock Resistance
15 gn 11 ms
Discrete Output Voltage
24 V DC relay output || 240 V AC relay output
Current Consumption
5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state on) || 0 mA 24 V DC via bus connector at state off) || 25 mA 5 V DC via bus connector at state on)
Product Certifications
cULus || CE || UKCA || RCM || EAC
Discrete Input Voltage Type
DC
Mounting Support
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Resistance To Electromagnetic Fields
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
Ambient Air Temperature For Operation
-10-35°C vertical installation || -10-55°C horizontal installation
Ambient Air Temperature For Storage
-25-70°C
Ip Degree Of Protection
IP20 with protective cover in place
Electrical Connection
11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for inputs and outputs
Relative Humidity
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Discrete Input Voltage
24 V
Storage Altitude
0-3000 m
Discrete Input Number
4 input IEC 61131-2 Type 1
Voltage State 0 Guaranteed
0 to 5 V input
Resistance To Fast Transients
1 kV I/OEN/IEC 61000-4-4 || 2 kV relay outputEN/IEC 61000-4-4
Current State 1 Guaranteed
>= 2.5 mA input)
Maximum Current Per Output Common
7 A
Local Signalling
for I/O state 1 LED per channel (green)
Minimum Load
10 mA 5 V DC relay output
Resistance To Electrostatic Discharge
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Response Time
4 ms (turn-on) || 4 ms (turn-off)
Discrete Output Logic
positive or negative
Vibration Resistance
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Discrete Output Type
relay normally open
Discrete Input Current
7 mA input
Range Compatibility
Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
Resistance To Conducted Disturbances
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Voltage State 1 Guaranteed
15 to 28.8 V input
Operating Altitude
0 to 6561.68 ft (0 to 2000 m)
Resistance To Magnetic Fields
30 A/m 50/60 Hz EN/IEC 61000-4-8
Maximum Cable Distance Between Devices
unshielded cable <30 m regular input
Current State 0 Guaranteed
<= 1 mA input)
Insulation
between input and internal logic 500 V AC || non-insulated between inputs || between input groups and output groups 1500 V AC || between open contact 750 V AC || between output and internal logic 500 V AC || non-insulated between outputs
Electromagnetic Emission
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Mechanical Durability
20000000 cycles
Output Circuit Voltage - Maximum
24 V DC, 240 V AC
Input Circuit Voltage - Maximum
24 V DC
Compatible Product Type
Programmable Logic Controllers
Output Circuit Current - Maximum
2 A
Compatible with Series
M221
Input Circuit Current - Maximum
7 mA
