For Use With
Modicon Mfr. No.M221 PLC
Features
Capable of Controlling Variable Speed Drives

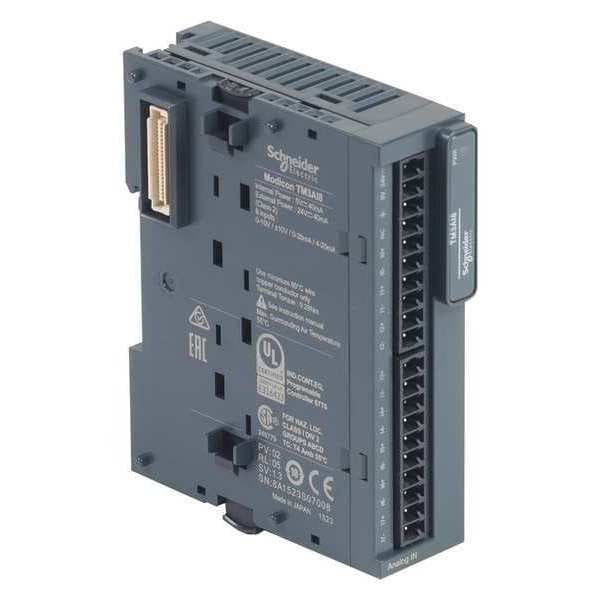

Product Type
Analog Input Module
Standards
EN/IEC 61131-2 || EN/IEC 61010-2-201
Shock Resistance
15 gn 11 ms
Ambient Air Temperature For Storage
-25-70°C
Product Certifications
CE || UKCA || RCM || EAC || cULus
Product Or Component Type
analog input module
Analogue Input Type
current 4 to 20 mA || current 0 to 20 mA || voltage 0 to 10 V || voltage - 10 to 10 V
Repeat Accuracy
+/-0.5 %FS
Input Impedance
<= 50 Ohm current || >= 1 MOhm voltage
Resistance To Fast Transients
1 kV EN/IEC 61000-4-4 I/O)
Resistance To Electrostatic Discharge
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Lsb Value
2.44 mV 0 to 10 V voltage || 4.88 mV - 10 to 10 V voltage || 4.88µA 0 to 20 mA current || 3.91µA 4 to 20 mA current
Relative Humidity
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Operating Altitude
0 to 6561.68 ft (0 to 2000 m)
Type Of Cable
twisted shielded pairs cable <30 m input
Electrical Connection
10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs and supply || 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs
Immunity To Microbreaks
10 ms
Analogue Input Resolution
12 bits || 11 bits + sign
Insulation
between input and supply 1500 V AC || between input and internal logic 500 V AC
Resistance To Magnetic Fields
30 A/m EN/IEC 61000-4-8
Electromagnetic Emission
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Current Consumption
40 mA 5 V DC via bus connector full load || 35 mA 5 V DC via bus connector no load || 30 mA 24 V DC via external supply no load || 40 mA 24 V DC via external supply full load
Non-Linearity
+/- 0.2 %FS
Mounting Support
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Temperature Drift
+/- 0.01 %FS/°C
Vibration Resistance
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
Conversion Time
1 ms + 1 ms per channel + 1 controller cycle time
Absolute Accuracy Error
+/- 1 % of full scale || +/- 0.2 % of full scale at 25°C
Supply Voltage Limits
20.4-28.8 V
Range Compatibility
Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262
Resistance To Conducted Disturbances
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
[Us] Rated Supply Voltage
24 V DC
Ip Degree Of Protection
IP20
Local Signalling
for PWR 1 LED (green)
Ambient Air Temperature For Operation
-10-55°C horizontal installation || -10-35°C vertical installation
Storage Altitude
0-3000 m
Resistance To Electromagnetic Fields
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
Permissible Continuous Overload
13 V voltage || 40 mA current
Surge Withstand
1 kV power supply common mode EN/IEC 61000-4-5 || 0.5 kV power supply differential mode EN/IEC 61000-4-5 || 1 kV input common mode EN/IEC 61000-4-5
Compatible with Brand
Schneider
Compatible Product Type
Programmable Logic Controllers
Input Circuit Voltage - Minimum
0 V
Wire Connection Type
Screw Clamp
Input Circuit Current - Minimum
4 mA
Input Circuit Current - Maximum
20 mA
Input Circuit Voltage - Maximum
10 V
Compatible with Series
Modicon, M221, M241, M251, M262
