  11. Extension Cartridge, 2 inputs, 0-10VDC

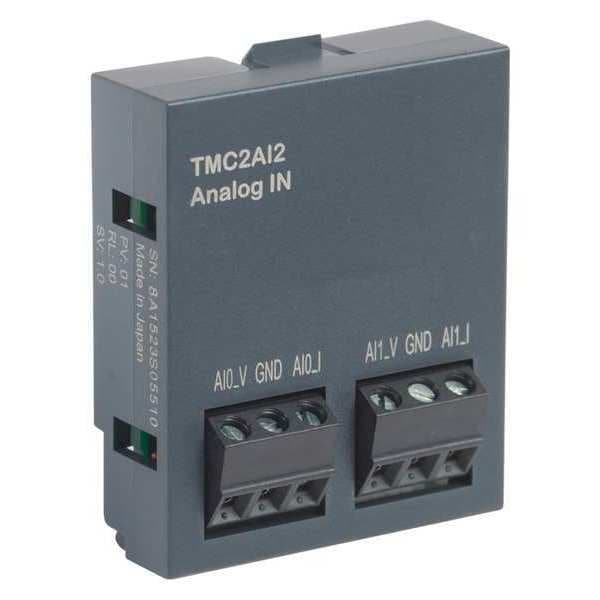

Schneider Electric Extension Cartridge, 2 inputs, 0-10VDC TMC2AI2 - main

Extension Cartridge, 2 inputs, 0-10VDC

  • Mfr # TMC2AI2

  • Zoro # G0040148

product price: $130.99
/ea
Free Shipping & Returns

Key Features

Power Required
0 to 10 V
Number of Inputs
2
Number of Outputs
0
For Use With
Modicon Mfr. No.M221 PLC
Features
2 Screw Terminal Blocks and Twisted shielded pairs cable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TMC2AI2
Zoro #
G0040148
UPC #
785901338482
Country of Origin
Japan

Dimensions

Width
35 mm
Height
41 mm
Depth
15 mm
Overall Depth
0.59 in
Overall Height
1.61 in
Overall Width
1.38 in

Details

Item
Analog Input Module
Power Required
0 to 10 V
Number of Inputs
2
Number of Outputs
0
For Use With
Modicon Mfr. No.M221 PLC
Features
2 Screw Terminal Blocks and Twisted shielded pairs cable
Product Type
Analog Input Module
Absolute Accuracy Error
+/- 0.1 % of full scale at 25°C || +/- 1 % of full scale
Cross Talk
<= 1 LSB
Product Or Component Type
analogue input cartridge
Type Of Cable
twisted shielded pairs cable
Maximum Cable Distance Between Devices
twisted shielded pairs cable <30 m input
Analogue Input Number
2
Immunity To Microbreaks
10 ms
Repeat Accuracy
+/- 0.5 %FS
Conversion Time
20 ms
Analogue Input Resolution
12 bits
Product Compatibility
Modicon M221C
Insulation
non-insulated between analogue input and internal logic
Input Impedance
<= 250 Ohm current || >= 1 MOhm voltage
Non-Linearity
+/- 0.01 %FS
Permissible Continuous Overload
13 V voltage || 40 mA current
Analogue Input Type
current 4 to 20 mA || current 0 to 20 mA || voltage 0 to 10 V
Lsb Value
2.44 mV 0 to 10 V voltage || 4.88µA 0 to 20 mA current || 3.91µA 4 to 20 mA current
Electrical Connection
3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs
Sampling Duration
10 ms
Temperature Drift
+/- 0.02 %FS/°C
Input Type
(4) Analog
Compatible with Series
M221C
Wire Connection Type
Screw Clamp
Input Circuit Current - Maximum
20 mA
Input Circuit Voltage - Minimum
0 V
Input Circuit Current - Minimum
4 mA
Input Circuit Voltage - Maximum
10 V
Compatible Product Type
Programmable Logic Controllers
Current Rating
20 mA

Description

Analog Input Module, Number of Inputs 2, For Use With Modicon Mfr. No.M221 PLC, Number of Outputs 0, Power Required 0 to 10 V, Product Type Extension Module, Current Rating 20 mA, Wire Connection Type Screw Clamp
