Item
Parallel Interface Module
For Use With
Modicon Mfr. No.M221 PLC
Features
Plate or Panel with Fixing Kit
Product Type

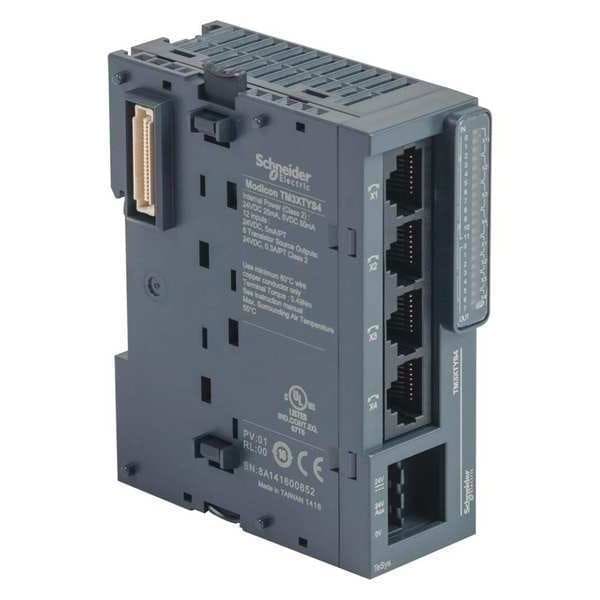

Parallel Interface Module
Output Voltage
24 V DC transistor output
Product Specific Application
TeSys U
Ambient Air Temperature For Operation
-10-35°C vertical installation || -10-55°C horizontal installation
Shock Resistance
15 gn 11 ms
Operating Altitude
0 to 6561.68 ft (0 to 2000 m)
Input Current Limits
5-5 mA per input
Number Of Output Channels
8
Product Certifications
CE || cULus || UKCA || RCM || EAC
Vibration Resistance
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Insulation
between the RJ45 connectors and internal logic 500 V AC || non-insulated between RJ45 connectors
Resistance To Fast Transients
1 kV inputEN/IEC 61000-4-4 || 1 kV outputEN/IEC 61000-4-4
Resistance To Magnetic Fields
30 A/m 50/60 Hz EN/IEC 61000-4-8
Storage Altitude
0-3000 m
Ip Degree Of Protection
IP20 with protective cover in place
Resistance To Electrostatic Discharge
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Local Signalling
3 LEDs green per channel input status || 2 LEDs green per channel output status
Electrical Connection
3 x 2.5 mm² removable screw terminal block pitch 5.08 mm for connecting the 24 V DC power supply || 4 RJ45 connectors for connecting the motor starters
Output Protection Type
against overload current limiter
Product Or Component Type
parallel interface module
Current Consumption
5 mA 5 V DC via bus connector at state on || 35 mA 5 V DC via bus connector at state off || 0 mA 24 V DC via bus connector at state on || 10 mA 24 V DC via bus connector at state off || 1200 mA 24 V DC external power supply at state on
Maximum Load Current
800 mA per channel starting mode 100 ms || 300 mA per channel normal mode
Surge Withstand
1 kV input common mode EN/IEC 61000-4-5 || 1 kV output common mode EN/IEC 61000-4-5
Resistance To Electromagnetic Fields
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
Relative Humidity
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Input Voltage Limits
19.2 to 28.8 V per input
Mounting Support
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Electromagnetic Emission
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Ambient Air Temperature For Storage
-25-70°C
Number Of Input Channels
12
Resistance To Conducted Disturbances
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Range Compatibility
Modicon M221 || Modicon M251 || Modicon M241 || Modicon M262
Response Time
< 10 ms turn-on input || < 10 ms turn-off input
[Us] Rated Supply Voltage
24 V DC external supply - 15 to 20 %)
Rated Supply Voltage
24 V DC external supply - 15 to 20%)
Compatible Product Type
Programmable Logic Controllers
Input Circuit Current - Maximum
20 mA
Wire Connection Type
Screw Clamp
Compatible with Series
M221
Input Circuit Current - Minimum
4 mA
Input Circuit Voltage - Maximum
10 V
Input Circuit Voltage - Minimum
0 V
