  11. Extension Module, 24VDC, For use with SR3B

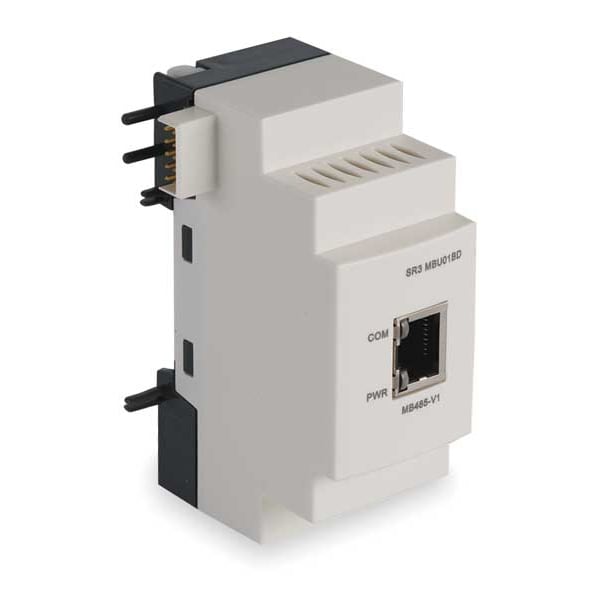

Schneider Electric Extension Module, 24VDC, For use with SR3B SR3MBU01BD - main

Extension Module, 24VDC, For use with SR3B

  • Mfr # SR3MBU01BD

  • Zoro # G3286841

product price: $181.99
/ea
Free Shipping & Returns

Key Features

Power Required
24V DC
Number of Inputs
0
Number of Outputs
0
For Use With
SR3B Logic Relays
Includes
Instruction Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SR3MBU01BD
Zoro #
G3286841
UPC #
785901824411
Country of Origin
France

Dimensions

Overall Width
1.3 in
Overall Depth
2.34 in
Overall Height
4.2 in

Details

Item
Communication Module
Power Required
24V DC
Number of Inputs
0
Number of Outputs
0
For Use With
SR3B Logic Relays
Includes
Instruction Manual
Features
Zelio Logic Programming
Product Type
Communication Module
Standards
EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-3 || EN/IEC 61000-4-4 level 3 || EN/IEC 61000-4-2 level 3 || EN/IEC 61000-4-5 || EN/IEC 60068-2-6 Fc
Ip Degree Of Protection
IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Parity
no || odd || even
Programming Language
FBD || ladder
Ambient Air Temperature For Storage
-40-70°C
Wiring Mode
2 or 4 wires
Local Signalling
for communication 1 LED || for power ON 1 LED
Environmental Characteristic
EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2
Communication Port Protocol
Modbus
Product Certifications
GOST || CSA || GL || C-tick || UL
Transmission Frame
RTU || ASCII
Relative Humidity
95-95 % without condensation or dripping water
Connections - Terminals
screw terminals, 1 x 0.25 to 1 x 2.5 mm² AWG 24 to AWG 14) semi-solid || screw terminals, 1 x 0.25 to 1 x 2.5 mm² AWG 24 to AWG 14) solid || screw terminals, 2 x 0.25 to 2 x 1.5 mm² AWG 23 to AWG 16) solid || screw terminals, 1 x 0.25 to 1 x 2.5 mm² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0.25 to 2 x 0.75 mm² AWG 24 to AWG 18) flexible with cable end
Operating Altitude
6561.68 ft (2000 m)
Product Compatibility
all modules with 24 V supply SR3 B to BD
Tightening Torque
0.5 N.m
Disturbance Radiated/Conducted
class B EN 55022-11 group 1
Maximum Altitude Transport
3048 m
Ambient Air Temperature For Operation
-20-40°C IEC 60068-2-1 and IEC 60068-2-2 || -20-55°C IEC 60068-2-1 and IEC 60068-2-2
Pollution Degree
2 EN/IEC 61131-2
Transmission rate
1200 bauds || 9600 bauds || 38400 bauds || 19200 bauds || 57600 bauds || 28800 bauds || 2400 bauds || 4800 bauds
Electrical Connection
1 connector RJ45
Number Of Addresses
1-247
Communication Port Support
RS485
Product Or Component Type
Modbus slave communication module
Compatible with Brand
Schneider
Wire Connection Type
Screw Clamp
Connector Type
RJ45
Input Circuit Voltage - Maximum
24 V DC
Communication Protocol Method
RS-485
Compatible Product Type
Logic Relays
Communication Protocol
Modbus
Compatible with Series
SR3B
Mounting Style
DIN Rail

Description

Communication Module, Number of Inputs 0, For Use With SR3B Logic Relays, Number of Outputs 0, Power Required 24V DC, Features Zelio Logic Programming, Product Type Extension Module, Mounting Style DIN Rail, Connector Type RJ45, Wire Connection Type Screw Clamp
