  13. Flange Mount, Enclosed Power Relay, Square, 25 A, 5 Pins, Quick Connect

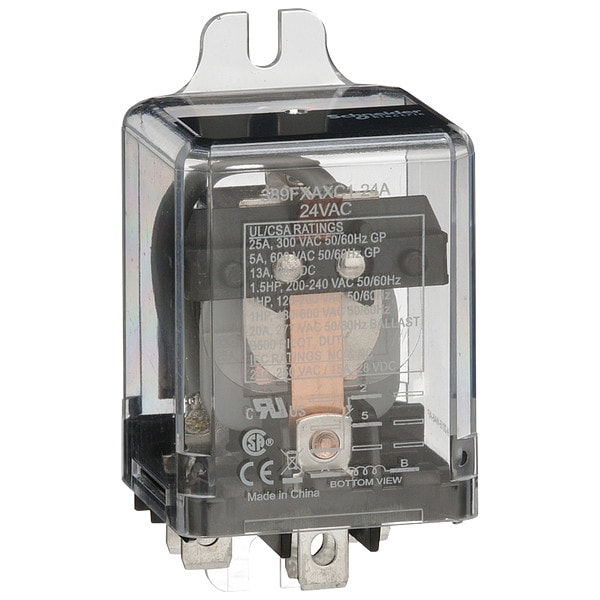

Schneider Electric Flange Mount, Enclosed Power Relay, Square, 25 A, 5 Pins, Quick Connect 389FXAXC1-24A - main

CAD Drawings

Download CAD Files

Flange Mount, Enclosed Power Relay, Square, 25 A, 5 Pins, Quick Connect

  • Mfr # 389FXAXC1-24A

  • Zoro # G0328352

CAD Available
product price: $20.85
/ea

Key Features

CAD Drawing
Mounting Style
Flange Mount
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
5
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
389FXAXC1-24A
Zoro #
G0328352
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.9 in
Dimensions
2.90"H, 1.53"W, 1.40"D
Body Width
1.53 in
Overall Depth
2.9 in
Body Depth
1.4 in
Body Height
2.9 in

Details

Item
Enclosed Power Relay
Mounting Style
Flange Mount
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
5
Coil Voltage
24V AC
Current Rating
25 A
Contact Form
SPDT
Contact Rating (AC)
20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V
Contact Rating (DC)
13 A @ 28V, 15 A @ 28V
Number of Poles
1
Contact Material
Silver Alloy
Standards
CE Certified, CSA Certified, cURus
Features
1hp @ 480-600V, Flag Indicator
Coil Rating
3.5VA, 1.4W
Power Consumption - Relay
3.5 VA
Contact Amp Rating (Resistive)
25A @ 300VAC, 13A @ 28VDC
Hz
50/60
Motor Rated
Yes
Status Indicator
Mechanical Flag
Mechanical Operating Durability
5,000,000
Minimum Switching Current
100 mA
Weight
2.96 oz
Horsepower @ 240V AC
1 1/2 hp
Horsepower @ 120V AC
1 hp
Frequency
50/60 Hz
Coil Resistance
72 ohm
Minimum Operating Temperature
-22 Degrees F
Maximum Operating Temperature
131 Degrees F
Power Consumption
1.3 W, 2 VA
Electrical Operating Durability
100,000
Dielectric Strength
1,600V AC Between Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Series
389F Power Series
Input Voltage
24V AC
Response Time
20 msec
Operating Current
13 A at 28V DC (Resistive Load), 15 A at 28V DC-1 (NO/NC), 20 A at 277V AC (Ballast), 22 A at 120V AC (Full Load), 25 A at 250V AC-1 (NO/NC), 25 A at 300V AC (Resistive Load), 5 A at 600V AC (Resistive Load)
Maximum Switching Voltage
600V AC
CAD Available
Yes
Power consumption in W
1.3 W DC
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Motor Power HP
1.5 hp 200/240 V AC 50/60 Hz; 1 hp 120...200V AC 50/60 Hz; 1 hp 600 V AC 50/60 Hz
Connections Terminals
Quick
Ambient Air Temperature for Storage
-22 to 185°F (-30 to 85°C)
Power consumption in VA
2 VA AC
Voltage Range
0.85...1.1 Uc AC
Product Certifications
cURus; CSA; CE
Ambient Air Temperature for Operation
-22 to 131°F (-30 to 55°C)
Contact Composition
1 NC + 1 NO

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form SPDT, Current Rating 25 A, Electrical Connection Quick-Connect, Number of Pins 5, Status Indicator Mechanical Flag, Contact Rating (AC) 20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Flange, Body Depth 2.18 in, Body Height 2.43 in, Body Width 2.5 in, Coil Resistance 72 ohm
