  13. Flush Indicator Light, 24VDC, Green

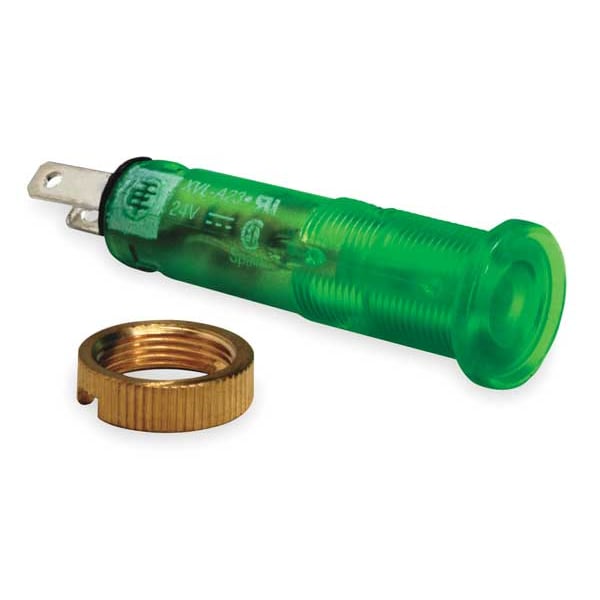

Schneider Electric Flush Indicator Light, 24VDC, Green XVLA233 - main

Flush Indicator Light, 24VDC, Green

  • Mfr # XVLA233

  • Zoro # G6148947

product price: $33.99
/ea

Key Features

Size
8mm Mounting dia
Color
Green
NEMA Rating
1
Shape
Round
Electrical Connection
Tab
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XVLA233
Zoro #
G6148947
UPC #
785901651369
Country of Origin
Spain

Dimensions

Size
8mm Mounting dia
Panel Thickness
0.030 in to 0.310 in
Width
10 mm
Height
10 mm
Depth
36 mm
Mounting Diameter
8 mm
Panel Cutout Diameter
5/16 in
Overall Width
0.39 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.42 in
Overall Height
0.39 in

Details

Item
Protruding Panel Light
Color
Green
NEMA Rating
1
Shape
Round
Electrical Connection
Tab
Voltage
24V DC
Lamp Type
LED
Standards
CSA, EU RoHS, UL Listed, WEEE
Current Drawn
18 mA
IP Rating
IP40, IP65
Series
Harmony XVL
Ambient Air Temperature For Operation
-25-70°C
Bulb Lifespan
100000 h
Current Consumption
18 mA
Product Certifications
UL || CSA
Product Or Component Type
LED pilot light with integral lens cap
[Ui] Rated Insulation Voltage
50 V IEC 60947-1
Terminals Description Iso N°1
(X1-X2)PL
Nominal Voltage Limit
0.8 to 1.1 Un
Ambient Air Temperature For Storage
-40-70°C
Light Block Colour
green
Component Name
XVL
[Us] Rated Supply Voltage
24 V
Ip Degree Of Protection
IP65 IEC 60529 with seal XVLZ911) || IP65 NF C 20-010 with seal XVLZ911) || IP40 IEC 60529 || IP40 NF C 20-010
Protection Type
integral ballast resistor || built-in by diode
Overvoltage Category
class 3 IEC 60536 || class 3 NF C 20-030
Light Source
covered LED
Protective Treatment
TC
Connections - Terminals
tag for Faston connectors 2.8 x 0.5 mm || tag for soldering connectors
Supply Circuit Type
DC
Terminals Description Iso N°1
(X1-X2)PL
Body Material
Plastic
NEMA Enclosure Rating
1
Includes Lamp Module
Lamp Module Included
Lens Color
Green
Lamp Color
Green
Includes Lens
Lens Included
Head Style
Protruding
Average Life
100,000 hr
Voltage Rating - Maximum
24 V DC

Description

Protruding Panel Light, LED, Green, Voltage 24V DC, Size 8mm Mounting dia, Electrical Connection Tab, Shape Round, Current Drawn 18 mA, Average Life 100,000 hr, NEMA Rating 1, IP Rating IP40, IP65, Panel Thickness 0.030 in to 0.310 in, Standards CSA, EU RoHS, UL Listed, WEEE
