Shop SCHNEIDER ELECTRIC

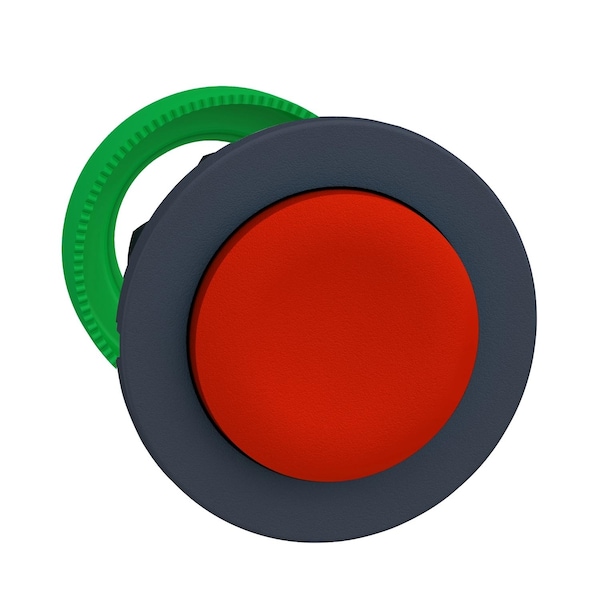

Harmony XB5, Antimicrobial Flush mounted push button head, plastic, projecting, red, Ø30, spring return, unmarked, dark grey bezel

  • Mfr # ZB5FL4

  • Zoro # G7655595

product price:
$
9.79
/ea

Key Features

Type of Operator
spring return
Standards
UL 508, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-1
Width
37 mm
Height
37 mm
IP Rating
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB5FL4
Zoro #
G7655595
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Width
37 mm
Height
37 mm
Depth
32 mm
Mounting Diameter
30.5 mm

Details

Item
Push Button Extended Red
Type of Operator
spring return
Standards
UL 508, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-1
IP Rating
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653.
Header
built-in-flush
Range of Product
Harmony XB5
Electrical Composition Code
C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting
Device Short Name
ZB5
Product or Component Type
head for non-illuminated push-button
Bezel Material
dark grey plastic
Ambient Air Temperature For Operation
-40-70°C
Product Compatibility
ZBYF..., ZBZF32, ZBZF33, ZB5AZ
Ambient Air Temperature For Storage
-40-70°C
Mechanical Durability
10000000 cycles
Shape of Signaling Unit Head
round
Device Presentation
basic element
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ik Degree of Protection
IK03 conforming to IEC 50102
Operator Profile
red projecting, unmarked
Head Type
built-in-flush
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6, 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Overvoltage Category
class II IEC 60536
Ip Degree of Protection
IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
Protective Treatment
TH
Type Of Operator
spring return

Description

Push Button Extended Red
