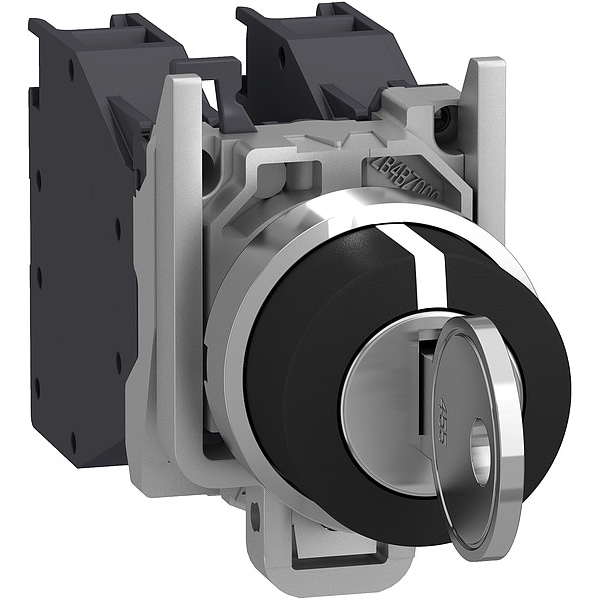

Schneider Electric Hazardous Location Selector Switch 3 Pos XB4BG33GEX - main

Hazardous Location Selector Switch 3 Pos

  • Mfr # XB4BG33GEX

  • Zoro # G9233242

product price: $315.99
/ea
Free Shipping & Returns

Key Features

Size
22 mm
Basic Material
Metal
Type of Operator
Selector Switch
Action
Maintained/Maintained/Maintained
Contact Form
1NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4BG33GEX
Zoro #
G9233242
UPC #
-
Country of Origin
France

Dimensions

Size
22 mm
Depth
110 mm
Width
46.2 mm
Height
30 mm
Mounting Diameter
22 mm
Embedding Depth
58 mm
Panel Cutout Diameter
22 mm

Details

Item
Keyed Selector Switch
Basic Material
Metal
Type of Operator
Selector Switch
Action
Maintained/Maintained/Maintained
Contact Form
1NO
Operator Head Material
Metal
Color
Black, Gray
Bezel Material
Metal
Position
3
Key Removal
Center
IP Rating
IP65
Contact Rating
1.9 A @ 380 V AC, 3 A @ 240 V AC, 6 A @ 120 V AC, 0.27 A @ 250 V DC, 0.55 A @ 125 V DC, 2.87 A @ 24 V DC
Safety Rating
ANSI/ISA 12.12.01, CSA C22.2 No 213, EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-7:2009, EN/IEC 60079-31:2009, UL 60079-0, UL 60079-1, UL 60079-31
Key Number
455
Series
XB4
Standards
ANSI/ISA, CSA, IEC, UL Listed
Number of Directions
3
Fixing Center
>= 30 x 40 mm support panel) 1-6 mm
Shape Of Signaling Unit Head
round
Mechanical Durability
5000000 cycles
Connections - Terminals
screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1
Protective Treatment
TH
Operator Profile
key switch
[Ie] Rated Operational Current
1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1
Device Short Name
XB4
Marking
Ex db eb IIC Gb || II 2 GD || Ex tb IIIC Db
Fixing Collar Material
zamak
Ip Degree Of Protection
IP66 IEC 60529
[Ui] Rated Insulation Voltage
415 V
Positive Opening
without
Ambient Air Temperature For Operation
-20-75°C
Product Or Component Type
complete selector switch
Ambient Air Temperature For Storage
-40-70°C
Contacts Type And Composition
2 NO
Contacts Usage
standard contacts
Key Withdrawal Position
center
Tightening Torque
0.8-1.2 N.m EN 60947-1
Device Mounting
fixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Operator Position Information
3 positions +/- 45°
Contact Operation
slow-break
Product Certifications
INERIS 04ATEX9004U
Gas Zone
zone 1 - 2
Switch Function @ 4th Position
No Fourth Position
Operator Head Color
Black
Includes Operator Key
Key Included
Key Removal Position
Center
Number of Positions
3
Operator Head Type
Keyed

Description

Keyed Selector Switch, 22 mm, 3 Position, Maintained/Maintained/Maintained Action, 1NO Contact Form, Type of Operator Selector Switch, Color Black, Gray, Center Key Removal, Operator Head Material Metal, Basic Material Metal, Bezel Material Metal, Contact Rating 1.9 A @ 380 V AC, 3 A @ 240 V AC, 6 A @ 120 V AC, 0.27 A @ 250 V DC, 0.55 A @ 125 V DC, 2.87 A @ 24 V DC, IP Rating IP65, Standards ANSI/ISA, CSA, IEC, UL Listed
