  13. Head And Potentiometer, R10K

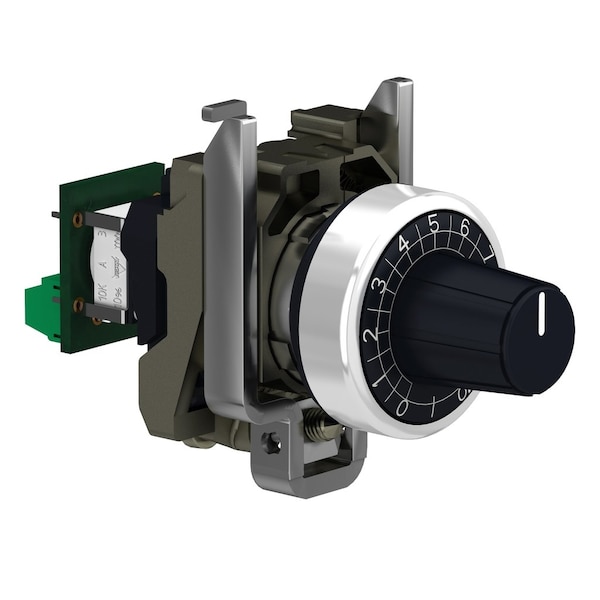

Schneider Electric Head And Potentiometer, R10K XB4BD912R10K - main

Head And Potentiometer, R10K

  • Mfr # XB4BD912R10K

  • Zoro # G0859212

product price: $52.99
/ea

Key Features

Standards
UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14
Material
cermet
Device Short Name
XB4
Ambient Air Temperature For Operation
-40-70°C
Cad Overall Width
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4BD912R10K
Zoro #
G0859212
UPC #
-
Country of Origin
France

Dimensions

Cad Overall Width
30 mm
Cad Overall Height
47 mm
Mounting Diameter
22 mm
Cad Overall Depth
82 mm

Details

Item
Potentiometer
Standards
UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14
Material
cermet
Device Short Name
XB4
Ambient Air Temperature For Operation
-40-70°C
Main Group
potentiometer
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Potentiometer Characteristic
linear
Ohmic Value
10000 Ohm
Ambient Air Temperature For Storage
-40-70°C
Operator Profile
knurled knob, with white)
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Group Of Product
potentiometer knurled knob
Product Compatibility
Ø 6 mm shaft
Bezel Material
chromium plated metal
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
[Us] Rated Supply Voltage
<= 30 V AC || <= 42 V DC
Precision Of Internal Conversion Resistor
-0.1
Protective Treatment
TH
Rated Power In W
1 W 70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Shock Protection Class
class II IEC 60536
Ip Degree Of Protection
IP66 IEC 60529 || IP69 IEC 60529 || IP69K IEC 60529
Colour Of Marking
white
Head Type
standard
Ik Degree Of Protection
IK06 IEC 50102
Product Certifications
CSA || BV || UL Listed
Shape Of Signaling Unit Head
round
Mechanical Durability
50000 cycles
Device Presentation
complete product
Product Or Component Type
potentiometer
Rated Supply Voltage
Less than or Equal to 30 V AC; Less than or Equal to 42 V DC
Series
XB4
Knob Style
Standard

Description

Potentiometer
