Shop SCHNEIDER ELECTRIC

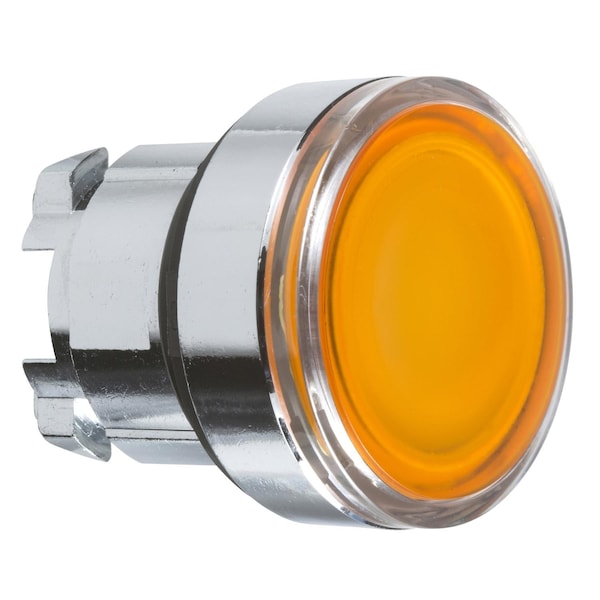

Head for illuminated push button, Harmony XB4, metal, orange flush, 22mm, universal LED, for insertion legend

  • Mfr # ZB4BA58

  • Zoro # G3304068

product price:  $11.79
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Orange
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB4BA58
Zoro #
G3304068
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Cad Overall Height
29 mm
Cad Overall Depth
30 mm
Mounting Diameter
22 mm
Cad Overall Width
29 mm

Details

Item
Orange flush illuminated pushbutton head
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Orange
Head Material
Plastic
Terminal Connection
Plug-In, Screw Clamp
Standards
UL 508, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C8201-1
Bezel Material
chromium plated metal
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Device Short Name
ZB4
Ambient Air Temperature For Storage
-40-70°C
Ik Degree Of Protection
IK06 EN 50102
Operator Additional Information
for insertion of legend
Type Of Operator
spring return
Shape Of Signaling Unit Head
round
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Ambient Air Temperature For Operation
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Profile
orange flush, unmarked
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Head Type
standard
Overvoltage Category
class I IEC 60536
Product Compatibility
universal LED
Protective Treatment
TH
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Mechanical Durability
10000000 cycles
Device Presentation
basic element
Product Or Component Type
head for illuminated push-button
Product Certifications
UL Listed || LROS (Lloyds register of shipping) || BV || CSA || GL || DNV
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
Cap/Operator or Lens Colour
orange
Range of Product
Harmony XB4

Description

Orange flush illuminated pushbutton head
