  15. Head for illuminated push button, Harmony XB5, antimicrobial, green, white, 30mm, universal LED, plain lens

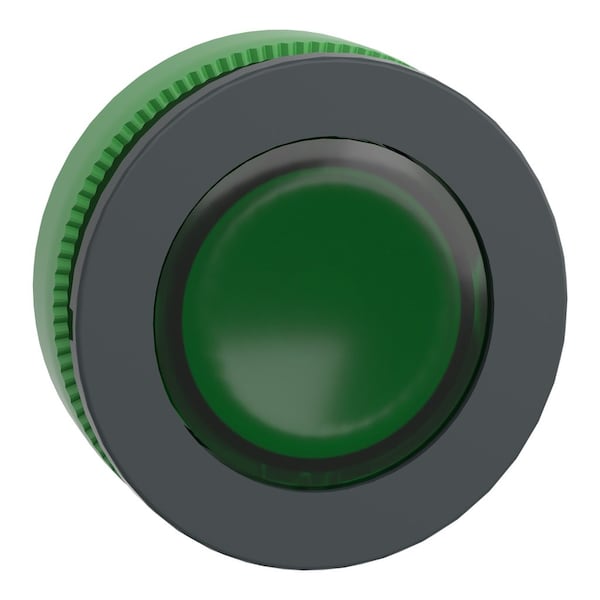

Schneider Electric Head for illuminated push button, Harmony XB5, antimicrobial, green, white, 30mm, universal LED, plain lens ZB5FW333 - main

Head for illuminated push button, Harmony XB5, antimicrobial, green, white, 30mm, universal LED, plain lens

  • Mfr # ZB5FW333

  • Zoro # G7655123

product price: $15.99
/ea

Key Features

Type of Operator
green flush, unmarked
NEMA Rating
NEMA 13 || NEMA 4X
Standards
CE || UL || CSA
Width
37 mm
IP Rating
IP66 IEC 60529 || IP67 || IP69 || IP69K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5FW333
Zoro #
G7655123
UPC #
-
Country of Origin
France

Dimensions

Width
37 mm
Height
37 mm
Depth
30 mm
Mounting Diameter
30.5 mm

Details

Item
Green Illuminated Push Button
Type of Operator
green flush, unmarked
NEMA Rating
NEMA 13 || NEMA 4X
Standards
CE || UL || CSA
IP Rating
IP66 IEC 60529 || IP67 || IP69 || IP69K
Operator Color
green
Type Of Operator
spring return
Header
built-in-flush
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Marking
unmarked
Ambient Air Temperature For Storage
-40-70°C
Product or Component Type
head for illuminated push-button
Mechanical Durability
10000000 cycles
Protective Treatment
TC
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Overvoltage Category
class II IEC 60536
Device Short Name
ZB5
Product Compatibility
universal LED
Shape of Signaling Unit Head
round
Bezel Material
dark grey plastic
Main Group
illum push-button
Device Presentation
basic element
Electrical Composition Code
M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED
Group of Product
flush push integral LED
Ambient Air Temperature For Operation
-40-70°C
Operator Additional Information
with plain lens
Ik Degree of Protection
IK03 conforming to IEC 62262
Range of Product
Harmony XB5

Description

Green Illuminated Push Button

Documents & Resources

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
