  15. Head for illuminated push button, Harmony XB5, antimicrobial, plastic, green flush mounted, 30mm, universal LED,

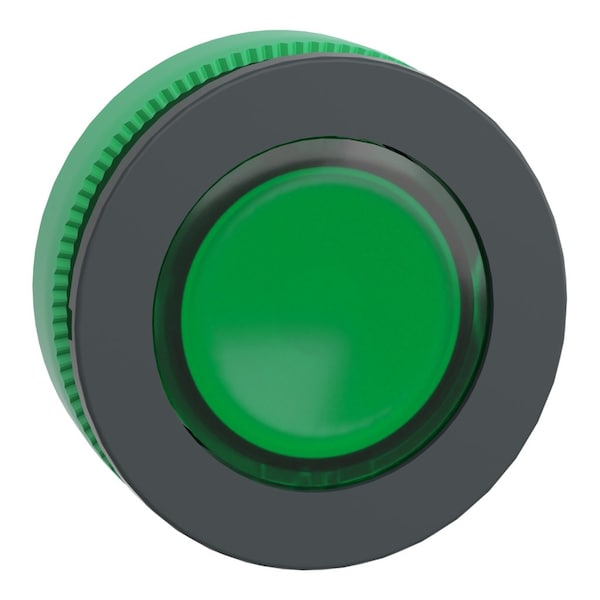

Schneider Electric Head for illuminated push button, Harmony XB5, antimicrobial, plastic, green flush mounted, 30mm, universal LED, ZB5FA38 - main

Head for illuminated push button, Harmony XB5, antimicrobial, plastic, green flush mounted, 30mm, universal LED,

  • Mfr # ZB5FA38

  • Zoro # G7655227

product price: $13.75
/ea

Key Features

Type of Operator
spring return
NEMA Rating
NEMA 13 || NEMA 4X
Standards
UL 508, EN/IEC 60947-1, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-1, GB 14048.5, EN/IEC 60947-5-4, JIS C8201-1
IP Rating
IP66 IEC 60529 || IP67 || IP69 || IP69K
Operator Color
green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5FA38
Zoro #
G7655227
UPC #
-
Country of Origin
France

Dimensions

Depth
30 mm
Height
37 mm
Width
37 mm
Mounting Diameter
30.5 mm

Details

Item
Push Button Green Flush Clear Ring
Type of Operator
spring return
NEMA Rating
NEMA 13 || NEMA 4X
Standards
UL 508, EN/IEC 60947-1, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-1, GB 14048.5, EN/IEC 60947-5-4, JIS C8201-1
IP Rating
IP66 IEC 60529 || IP67 || IP69 || IP69K
Operator Color
green
Header
built-in-flush
Head Type
built-in-flush
Operator Additional Information
for insertion of legend
Operator Profile
green flush, unmarked
Ip Degree of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Mechanical Durability
10000000 cycles
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product or Component Type
head for illuminated push-button
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Cap/Operator or Lens Colour
green
Range of Product
Harmony XB5
Group of Product
flush push with inser of legend
Ambient Air Temperature For Operation
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Short Name
ZB5
Main Group
illum push-button
Product Compatibility
universal LED
Marking
unmarked
Ik Degree of Protection
IK03 conforming to EN 50102
Shape of Signaling Unit Head
round
Nema Degree of Protection
NEMA 13, NEMA 4X
Electrical Composition Code
M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, C4 6 single and double front mounting, C14 2 single front mounting, SF2 2 single front mounting, C3 6 single front mounting integral LED
Ambient Air Temperature For Storage
-40-70°C
Protective Treatment
TC
Overvoltage Category
class II IEC 60536
Bezel Material
dark grey plastic
Type Of Operator
spring return

Description

Push Button Green Flush Clear Ring
