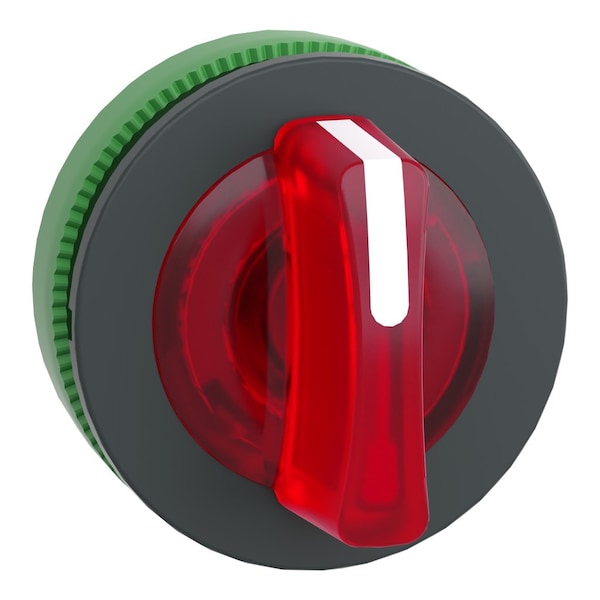

Head for illuminated selector switch, Harmony XB5, plastic, red handle, flush mounted, universal LED, 3 positions

  • Mfr # ZB5FK1343

  • Zoro # G7655306

product price:  $25.95
/ea

Key Features

Height
37 mm
Width
37 mm
Standards
EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-5, UL 508, EN/IEC 60947-5-4, JIS C8201-5-1, JIS C8201-1
Bezel Material
dark grey plastic
Type of Operator
stay put
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
ZB5FK1343
Zoro #
G7655306
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Height
37 mm
Width
37 mm
Mounting Diameter
30.5 mm
Cad Overall Height
37 mm
Cad Overall Depth
46 mm
Cad Overall Width
37 mm

Details

Item
Selector Switch Illum Red 3 Pos
Standards
EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-5, UL 508, EN/IEC 60947-5-4, JIS C8201-5-1, JIS C8201-1
Bezel Material
dark grey plastic
Type of Operator
stay put
Mechanical Durability
500000 cycles
Product or Component Type
head for illuminated selector switch
Electrical Composition Code
M3 4 single front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, M4 4 single and double front mounting integral LED
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Overvoltage Category
class II IEC 60536
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ik Degree of Protection
IK03 conforming to IEC 50102
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Short Name
ZB5
Shape of Signaling Unit Head
round
Device Presentation
basic element
Protective Treatment
TH
Head Type
built-in-flush
Nema Degree of Protection
NEMA 13, NEMA 4X
Operator Position Information
3 positions +/- 45°
Ip Degree of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Product Compatibility
universal LED
Range of Product
Harmony XB5
Ambient Air Temperature For Operation
-40-70°C
Ambient Air Temperature For Storage
-40-70°C
Operator Profile
red standard handle
Type Of Operator
stay put
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Certifications
GL || DNV || CSA || LROS (Lloyds register of shipping) || BV || UL Listed
Ik Degree Of Protection
IK03 IEC 50102
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Product Or Component Type
head for illuminated selector switch
Shape Of Signaling Unit Head
round

Description

Selector Switch Illum Red 3 Pos
