  13. Head for key selector switch, Harmony XB6, 16mm, 2 positions, stay put, 200

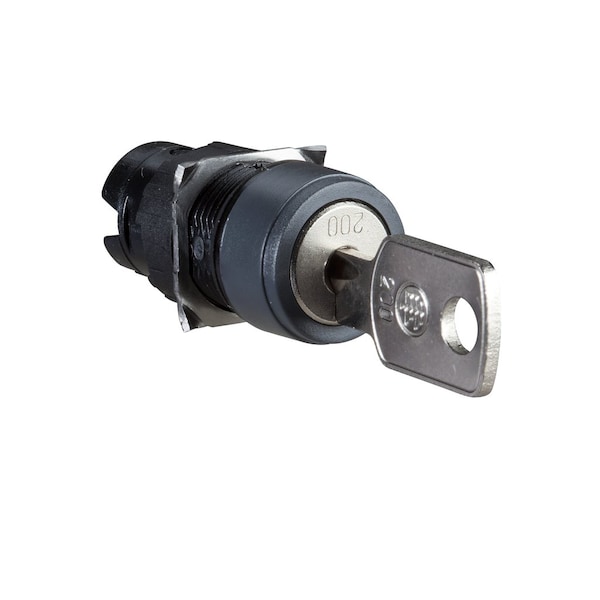

Schneider Electric Head for key selector switch, Harmony XB6, 16mm, 2 positions, stay put, 200 ZB6AGB - main

Head for key selector switch, Harmony XB6, 16mm, 2 positions, stay put, 200

  • Mfr # ZB6AGB

  • Zoro # G3305492

product price: $45.95
/ea

Key Features

Type of Operator
stay put
Bezel Material
plastic
Standards
EN/IEC 60947-5-5, EN/IEC 60947-5-1, UL 508, JIS C 852, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-1
Height
18 mm
Width
18 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB6AGB
Zoro #
G3305492
UPC #
-
Country of Origin
Mexico

Dimensions

Height
18 mm
Width
18 mm
Mounting Diameter
16 mm
Cad Overall Width
18 mm
Cad Overall Height
18 mm
Cad Overall Depth
55 mm

Details

Item
Selector switch head 016 2-position stay
Type of Operator
stay put
Bezel Material
plastic
Standards
EN/IEC 60947-5-5, EN/IEC 60947-5-1, UL 508, JIS C 852, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Product or Component Type
head for key selector switch
Nema Degree of Protection
NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6, 5 gn 2-500 Hz)IEC 60068-2-6
Type of Keylock
key 200
Shape of Signaling Unit Head
round
Operator Position Information
2 positions
Device Short Name
ZB6
Key Withdrawal Position
center
Ip Degree of Protection
IP65 IEC 60529
Range of Product
Harmony XB6
Electrical Shock Protection Class
class II IEC 61140
Operator Profile
black key switch
Ambient Air Temperature For Operation
-25-70°C
Protective Treatment
TC
Type Of Keylock
key 200
Product Certifications
GOST || CCC || CSA || UL
Type Of Operator
stay put
Ip Degree Of Protection
IP65 IEC 60529
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Product Or Component Type
head for key selector switch
Shape Of Signaling Unit Head
round

Description

Selector switch head 016 2-position stay
