  8. Head for non illuminated push button, Harmony XB4, metal, flush, black, 22mm, spring return, marked DOWN ARROW

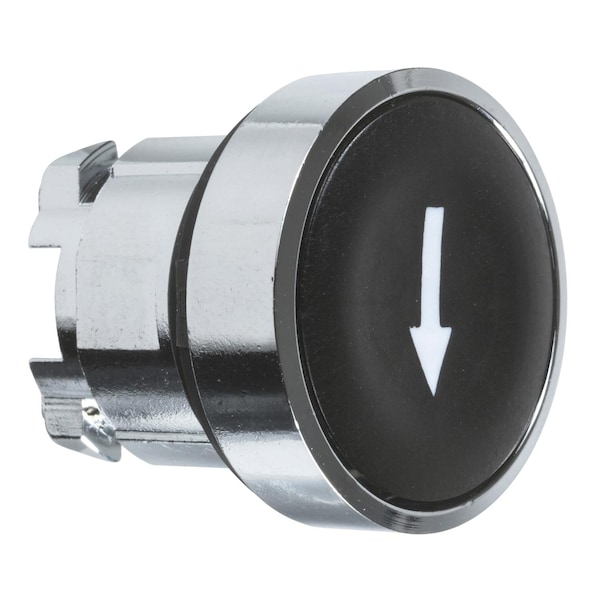

Schneider Electric Head for non illuminated push button, Harmony XB4, metal, flush, black, 22mm, spring return, marked DOWN ARROW ZB4BA335 - main

Head for non illuminated push button, Harmony XB4, metal, flush, black, 22mm, spring return, marked DOWN ARROW

  • Mfr # ZB4BA335

  • Zoro # G7655437

product price:  $15.55
/ea

Key Features

Type of Operator
black flush, down arrow white)
NEMA Rating
NEMA 13 || NEMA 4X
Standards
UL || CSA
IP Rating
IP66 IEC 60529 || IP67 || IP69 || IP69K
Depth
28 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB4BA335
Zoro #
G7655437
UPC #
-
Country of Origin
France

Dimensions

Depth
28 mm
Height
29 mm
Width
29 mm
Mounting Diameter
22.5 mm

Details

Item
Flush Black With White Up Arrow Marking
Type of Operator
black flush, down arrow white)
NEMA Rating
NEMA 13 || NEMA 4X
Standards
UL || CSA
IP Rating
IP66 IEC 60529 || IP67 || IP69 || IP69K
Type Of Operator
spring return
Header
standard
Protective Treatment
TH
Bezel Material
chromium plated metal
Ambient Air Temperature For Storage
-40-70°C
Mechanical Durability
10000000 cycles
Device Presentation
basic element
Electrical Composition Code
C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting
Shape of Signaling Unit Head
round
Ambient Air Temperature For Operation
-40-70°C
Ik Degree of Protection
IK06 conforming to IEC 50102
Cap/Operator or Lens Colour
black
Device Short Name
ZB4
Range of Product
Harmony XB4
Overvoltage Category
class I IEC 60536
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product or Component Type
head for non-illuminated push-button
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6

Description

Flush Black With White Up Arrow Marking
