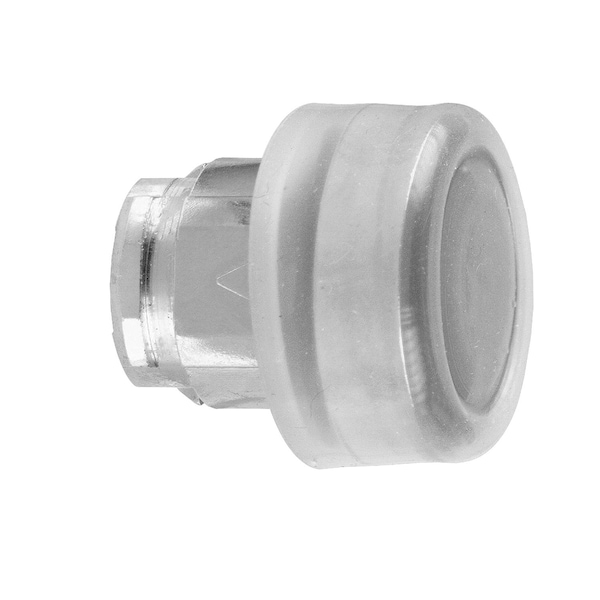

Head for non illuminated push button, Harmony XB4, metal, projecting, black, 22mm, spring return, booted, unmarked

  • Mfr # ZB4BP2

  • Zoro # G4062953

product price:  $19.49
/ea

Key Features

Bezel Material
chromium plated metal
Standards
JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
Cad Overall Height
30 mm
Operator Additional Information
clear boot
Device Short Name
ZB4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB4BP2
Zoro #
G4062953
UPC #
-
Country of Origin
France

Dimensions

Cad Overall Height
30 mm
Cad Overall Depth
35 mm
Mounting Diameter
22 mm
Cad Overall Width
30 mm

Details

Item
Push button head,metal,projecting,bla
Bezel Material
chromium plated metal
Standards
JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
Operator Additional Information
clear boot
Device Short Name
ZB4
Operator Profile
black projecting, unmarked
Ik Degree Of Protection
IK06 IEC 50102
Overvoltage Category
class I IEC 60536
Product Compatibility
not compatible with legend holder
Type Of Operator
spring return
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529 || IP67
Product Certifications
BV || CSA || DNV || UL Listed || GL || LROS (Lloyds register of shipping)
Ambient Air Temperature For Operation
-40-70°C
Device Presentation
basic element
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Or Component Type
head for non-illuminated push-button
Protective Treatment
TH
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Shape Of Signaling Unit Head
round
Head Type
standard
Ambient Air Temperature For Storage
-40-70°C
Mechanical Durability
10000000 cycles
Range of Product
Harmony XB4
Cap/Operator or Lens Colour
black

Description

Push button head,metal,projecting,bla
