  15. Head for non illuminated push button, Harmony XB5, plastic, flush, red, 22mm, spring return, coloured boot, unmarked

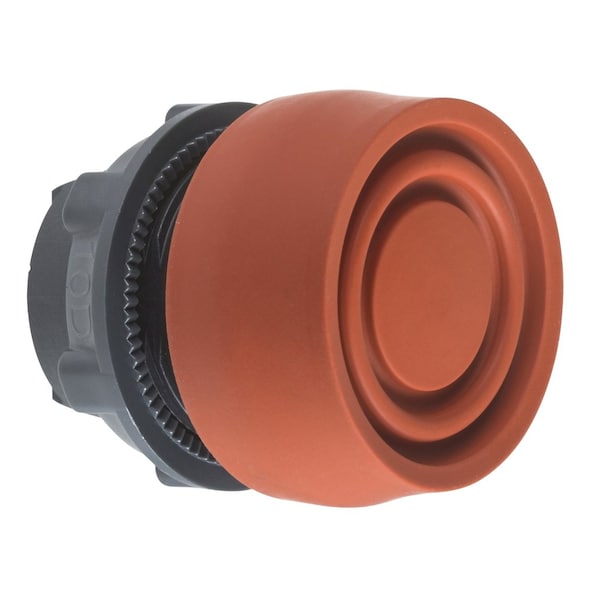

Schneider Electric Head for non illuminated push button, Harmony XB5, plastic, flush, red, 22mm, spring return, coloured boot, unmarked ZB5AP4S - main

Head for non illuminated push button, Harmony XB5, plastic, flush, red, 22mm, spring return, coloured boot, unmarked

  • Mfr # ZB5AP4S

  • Zoro # G4609741

product price: $26.89
/ea

Key Features

Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AP4S
Zoro #
G4609741
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Width
30 mm
Height
30 mm
Mounting Diameter
22 mm
Cad Overall Height
30 mm
Cad Overall Width
30 mm
Cad Overall Depth
33 mm

Details

Item
Push Button Head
Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Non-Illuminated
Head Color
Red
Standards
UL 508, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1, IEC 60947-5-1, JIS C8201-1
Type of Operator
spring return
Bezel Material
dark grey plastic
Device Presentation
basic element
Mechanical Durability
10000000 cycles
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Operator Profile
red flush, unmarked
Operator Additional Information
coloured boot
Overvoltage Category
class II IEC 60536
Nema Degree of Protection
NEMA 13, NEMA 4X
Range of Product
Harmony XB5
Electrical Composition Code
C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment
TH
Ik Degree of Protection
IK03 conforming to IEC 50102
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree of Protection
IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653
Shape of Signaling Unit Head
round
Head Type
standard
Product Compatibility
legend holder
Product or Component Type
head for non-illuminated push-button
Device Short Name
ZB5
Station Name
XALD 1...5 cut-outs, XALK 2...5 cut-outs
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-40-70°C
Type Of Operator
spring return
Shape Of Signaling Unit Head
round
Product Certifications
GL || UL Listed || CSA || LROS (Lloyds register of shipping) || BV || DNV
Product Or Component Type
head for non-illuminated push-button
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Ik Degree Of Protection
IK03 IEC 50102

Description

Red flush pushbutton head 022 spring ret
