  15. Head for non illuminated push button, Harmony XB5, XB4, blue recessed pushbutton Ø22 mm spring return unmarked

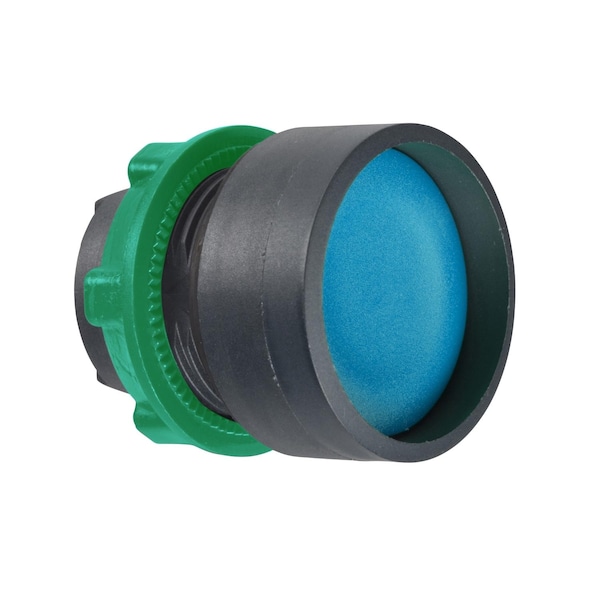

Schneider Electric Head for non illuminated push button, Harmony XB5, XB4, blue recessed pushbutton Ø22 mm spring return unmarked ZB5AA66 - main

Head for non illuminated push button, Harmony XB5, XB4, blue recessed pushbutton Ø22 mm spring return unmarked

  • Mfr # ZB5AA66

  • Zoro # G4609172

product price: $29.15
/ea

Key Features

Push Button Style
Recessed
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Blue
Head Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AA66
Zoro #
G4609172
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Cad Overall Height
29 mm
Cad Overall Depth
31 mm

Details

Item
Push Button Operator
Push Button Style
Recessed
Operator Illumination
Non-Illuminated
Head Color
Blue
Head Material
Plastic
Standards
UL Listed || GL || CSA || BV || LROS (Lloyds register of shipping) || DNV
Bezel Material
dark grey plastic
Product Certifications
UL Listed || GL || CSA || BV || LROS (Lloyds register of shipping) || DNV
Device Short Name
ZB5
Type Of Operator
spring return
Ik Degree Of Protection
IK03 IEC 50102
Protective Treatment
TH
Ambient Air Temperature For Operation
-40-70°C
Product Or Component Type
head for non-illuminated push-button
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Category
class II IEC 60536
Device Presentation
basic element
Shape Of Signaling Unit Head
round
Mechanical Durability
10000000 cycles
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Head Type
standard
Operator Profile
blue recessed, unmarked
Operator Additional Information
high guard
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Range of Product
Harmony XB5

Description

Blue recessed pushbutton head 022 spring
