  15. Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens

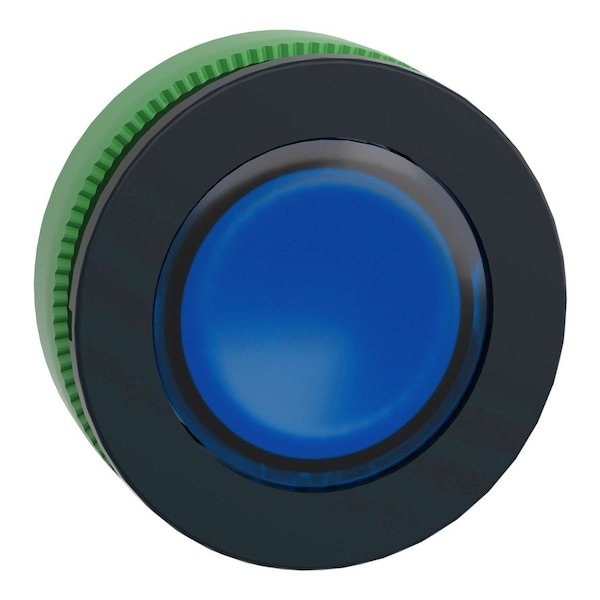

Schneider Electric Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens ZB5FV063 - main

Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens

  • Mfr # ZB5FV063

  • Zoro # G7655708

product price: $6.99
/ea
Sold in multiples of 2 for $13.98

Key Features

Standards
UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
Bezel Material
dark grey plastic
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Product Compatibility
universal LED
Overvoltage Category
class II IEC 60536
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5FV063
Zoro #
G7655708
UPC #
-
Country of Origin
France

Dimensions

Mounting Diameter
30.5 mm
Cad Overall Depth
30 mm
Cad Overall Width
37 mm
Cad Overall Height
37 mm

Details

Item
Blue Pilot Light
Standards
UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
Bezel Material
dark grey plastic
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Product Compatibility
universal LED
Overvoltage Category
class II IEC 60536
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head
round
Product Or Component Type
head for pilot light
Cap/Operator Or Lens Colour
blue
Device Presentation
basic element
Ambient Air Temperature For Storage
-40-70°C
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation
-40-70°C
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ik Degree Of Protection
IK03 IEC 50102
Electrical Composition Code
P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED
Operator Additional Information
with plain lens
Head Type
built-in-flush
Protective Treatment
TH
Device Short Name
ZB5
Range of Product
Harmony XB5

Description

Blue Pilot Light
