  15. Head for pilot light, Harmony XB5, antimicrobial, plastic, orange, 30mm, universal LED, plain lens

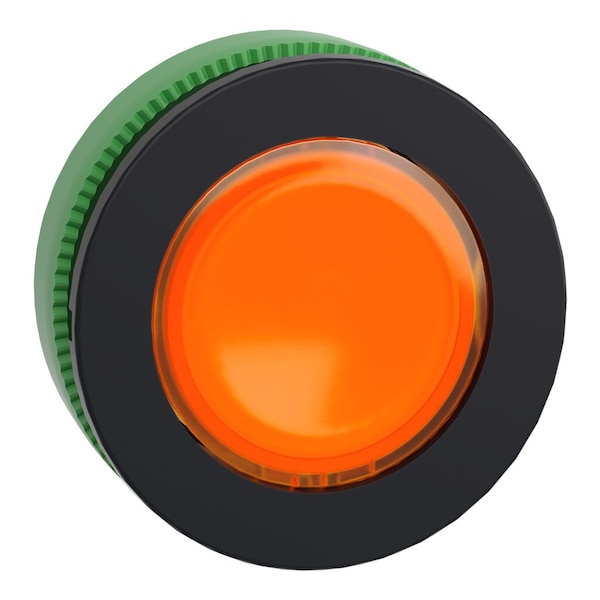

Schneider Electric Head for pilot light, Harmony XB5, antimicrobial, plastic, orange, 30mm, universal LED, plain lens ZB5FV053 - main

Head for pilot light, Harmony XB5, antimicrobial, plastic, orange, 30mm, universal LED, plain lens

  • Mfr # ZB5FV053

  • Zoro # G7655604

product price: $6.79
/ea
Sold in multiples of 2 for $13.58

Key Features

Standards
EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
Bezel Material
dark grey plastic
Head Type
built-in-flush
Shape Of Signaling Unit Head
round
Device Presentation
basic element
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5FV053
Zoro #
G7655604
UPC #
-
Country of Origin
France

Dimensions

Cad Overall Depth
30 mm
Cad Overall Height
37 mm
Cad Overall Width
37 mm
Mounting Diameter
30.5 mm

Details

Item
Orange Pilot Light
Standards
EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
Bezel Material
dark grey plastic
Head Type
built-in-flush
Shape Of Signaling Unit Head
round
Device Presentation
basic element
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Or Component Type
head for pilot light
Product Compatibility
universal LED
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Operator Additional Information
with plain lens
Device Short Name
ZB5
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Operation
-40-70°C
Ambient Air Temperature For Storage
-40-70°C
Protective Treatment
TH
Overvoltage Category
class II IEC 60536
Cap/Operator Or Lens Colour
yellow
Ik Degree Of Protection
IK03 IEC 50102
Electrical Composition Code
P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED
Range of Product
Harmony XB5

Description

Orange Pilot Light
