  15. Head for pilot light, Harmony XB5, antimicrobial, plastic, red, 30mm, universal LED, plain lens

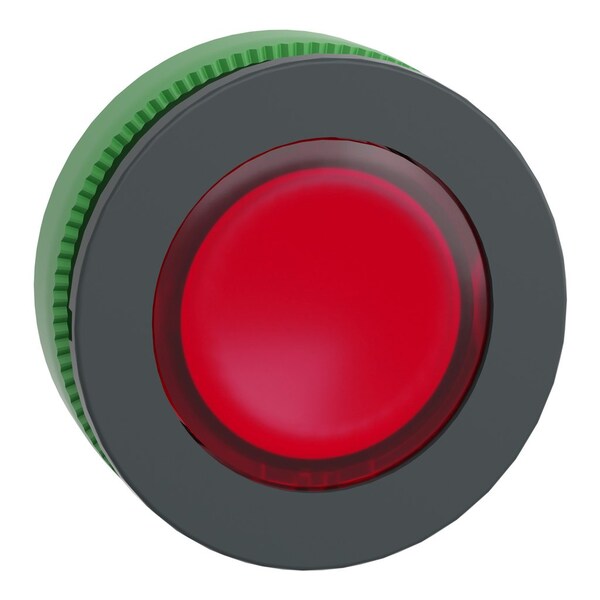

Schneider Electric Head for pilot light, Harmony XB5, antimicrobial, plastic, red, 30mm, universal LED, plain lens ZB5FV043 - main

Head for pilot light, Harmony XB5, antimicrobial, plastic, red, 30mm, universal LED, plain lens

  • Mfr # ZB5FV043

  • Zoro # G7655638

product price: $7.25
/ea
Sold in multiples of 2 for $14.50

Key Features

Height
37 mm
Width
37 mm
Standards
EN/IEC 60947-5-4, UL 508, EN/IEC 60947-5-5, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, JIS C8201-1, ISO 21702, ISO 22196:2011
Bezel Material
dark grey plastic
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5FV043
Zoro #
G7655638
UPC #
-
Country of Origin
France

Dimensions

Height
37 mm
Width
37 mm
Mounting Diameter
30.5 mm
Cad Overall Depth
30 mm
Cad Overall Width
37 mm
Cad Overall Height
37 mm

Details

Item
Red Pilot Light
Standards
EN/IEC 60947-5-4, UL 508, EN/IEC 60947-5-5, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, JIS C8201-1, ISO 21702, ISO 22196:2011
Bezel Material
dark grey plastic
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ip Degree of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Nema Degree of Protection
NEMA 13, NEMA 4X
Cap/Operator or Lens Colour
red
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40-70°C
Device Presentation
basic element
Head Type
built-in-flush
Range of Product
Harmony XB5
Operator Additional Information
with plain lens
Protective Treatment
TH
Electrical Composition Code
P1 front mounting integral LED, P2 front mounting integral LED and transformer, PF1 front mounting integral LED
Shape of Signaling Unit Head
round
Ik Degree of Protection
IK03 conforming to IEC 50102
Overvoltage Category
class II IEC 60536
Ambient Air Temperature For Operation
-40-70°C
Product Compatibility
universal LED
Product or Component Type
head for pilot light
Device Short Name
ZB5
Cap/Operator Or Lens Colour
red
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Shape Of Signaling Unit Head
round
Product Or Component Type
head for pilot light
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ik Degree Of Protection
IK03 IEC 50102

Description

Red Pilot Light
