  15. Head for pilot light, Harmony XB6, yellow, 16mm, integral LED

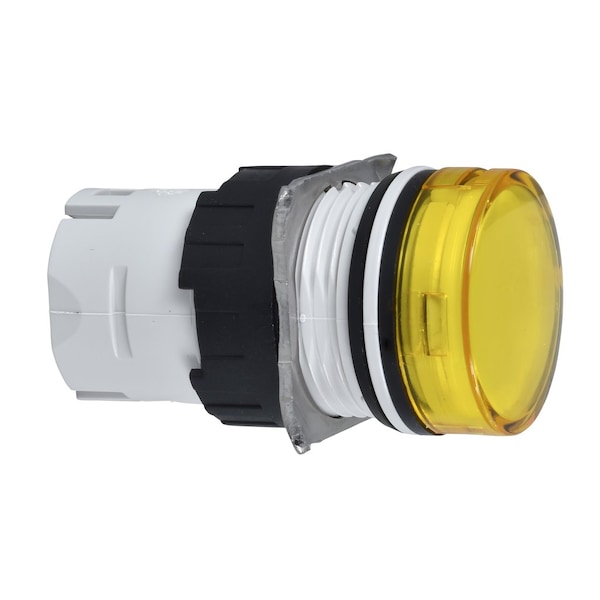

Schneider Electric Head for pilot light, Harmony XB6, yellow, 16mm, integral LED ZB6AV5 - main

Head for pilot light, Harmony XB6, yellow, 16mm, integral LED

  • Mfr # ZB6AV5

  • Zoro # G3507205

product price: $7.25
/ea
Sold in multiples of 2 for $14.50

Key Features

Panel Cutout Diameter
16 mm
Head Color
Yellow
Head Material
Plastic
Standards
EN/IEC 60947-5-1, UL 508, EN/IEC 60947-1, JIS C 852, JIS C 4520, EN/IEC 60947-5-5, CSA C22.2 No 14
Color
Yellow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB6AV5
Zoro #
G3507205
UPC #
785901360377
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
16 mm
Width
18 mm
Height
18 mm
Mounting Diameter
16 mm
Cad Overall Depth
33 mm
Cad Overall Width
18 mm
Cad Overall Height
18 mm

Details

Item
Illuminated Push Button
Head Color
Yellow
Head Material
Plastic
Standards
EN/IEC 60947-5-1, UL 508, EN/IEC 60947-1, JIS C 852, JIS C 4520, EN/IEC 60947-5-5, CSA C22.2 No 14
Color
Yellow
Range of Product
Harmony XB6
Bezel Material
plastic
Nema Degree of Protection
NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94
Product Compatibility
integral LED
Shape of Signaling Unit Head
round
Ip Degree of Protection
IP65 IEC 60529
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6, 5 gn 2-500 Hz)IEC 60068-2-6
Electrical Shock Protection Class
class II IEC 61140
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment
TC
Product or Component Type
head for pilot light
Ambient Air Temperature For Operation
-25-70°C
Device Short Name
ZB6
Product Certifications
CCC || GOST || UL || CSA
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Shape Of Signaling Unit Head
round
Cap/Operator Or Lens Colour
yellow
Ip Degree Of Protection
IP65 IEC 60529
Product Or Component Type
head for pilot light

Description

16Mm Pilot Lt 65168007, Color Yellow
