  15. Head for Push Button, 30 mm, Orange

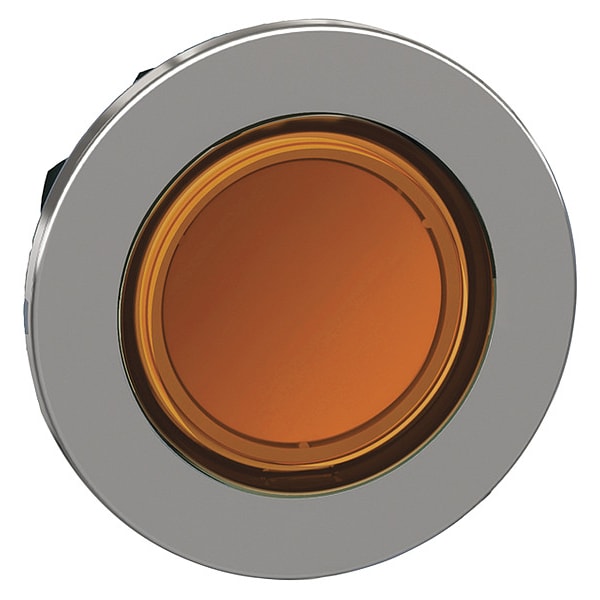

Schneider Electric Head for Push Button, 30 mm, Orange ZB4FW353 - main

Head for Push Button, 30 mm, Orange

  • Mfr # ZB4FW353

  • Zoro # G3458823

product price: $12.85
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Orange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZB4FW353
Zoro #
G3458823
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Cad Overall Depth
31 mm
Cad Overall Width
36.6 mm
Cad Overall Height
36.6 mm
Mounting Diameter
30.5 mm
Overall Height
1.44 in
Overall Depth
1.22 in
Overall Width
1.44 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Orange
Head Material
Metal
Standards
CCC, CE, Class I IEC 60536, CSA C22.2 No.14, EAC, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, ISO 20653, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, Type 12 UL 50E, Type 13 UL 50E, Type 4 UL 50E, Type 4X UL 50E, UL 508
Number of Operators
1
Lamp Module Voltage
Module Not Included
Series
XB4
Lamp Module Type
No Lamp Module Included
Type of Operator
Flush Button
Lamp Voltage
Dependant on Module Used
Color
Orange
Replacement Lamp
Module Not Included
Lamp Type
No Lamp Module Included
IP Rating
IP66, IP67, IP69, IP69K
Bezel Material
Metal
NEMA Rating
12, 13, 4, 4X
Bezel
Chrome Plated Metal
Legend/Background Color
No Legend
Basic Material
Metal
Features
Visually Distinct at a Distance, Snap-Fit Assembly, Double Head
Shape Of Signaling Unit Head
round
Ik Degree Of Protection
IK06 EN 50102
Product Or Component Type
head for illuminated push-button
Mechanical Durability
10000000 cycles
Product Certifications
UL Listed || CSA || CCC || EAC
Operator Profile
orange flush, unmarked
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Operator Additional Information
with plain lens
Ambient Air Temperature For Operation
-40-70°C
Head Type
built-in-flush
Device Short Name
ZB4F
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Overvoltage Category
class I IEC 60536
Device Presentation
basic element
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Product Compatibility
universal LED
Protective Treatment
TH
Operating Temperature - Minimum
-40 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operator Material
Metal
Number of Indicator Lights
1
Product Type
Push Button Operators

Description

Flush Push Button, 30 mm, Momentary, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Orange, NEMA Rating 12, 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Legend/Background Color No Legend
