  15. Head for Push Button, 30 mm, Red

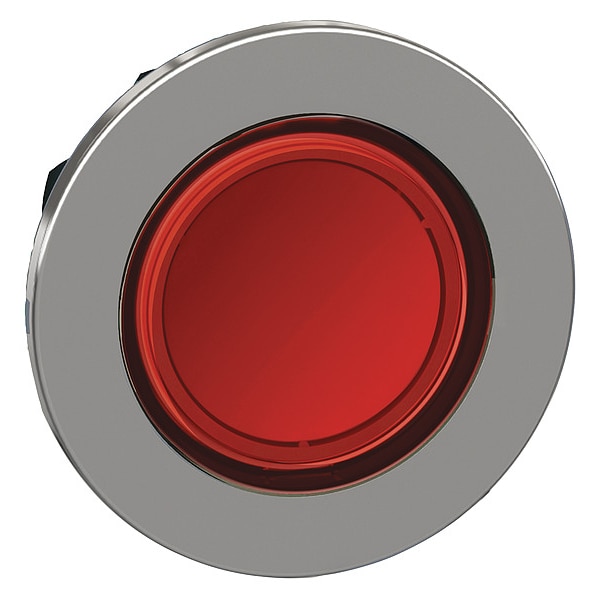

Schneider Electric Head for Push Button, 30 mm, Red ZB4FH043 - main

Head for Push Button, 30 mm, Red

  • Mfr # ZB4FH043

  • Zoro # G3459618

product price: $19.69
/ea

Key Features

Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4FH043
Zoro #
G3459618
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Overall Height
1.44 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.22 in
Overall Width
1.44 in
Mounting Diameter
30.5 mm
Cad Overall Height
36.6 mm
Cad Overall Width
36.6 mm
Cad Overall Depth
31 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Head Color
Red
Head Material
Metal
Standards
CCC, CE, Class I IEC 60536, CSA C22.2 No.14, EAC, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, ISO 20653, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, Type 12 UL 50E, Type 13 UL 50E, Type 4 UL 50E, Type 4X UL 50E, UL 508
Bezel
Chrome Plated Metal
Features
Withstands Harsh Environments, 3-Function Head
Replacement Lamp
Module Not Included
Number of Operators
1
Lamp Module Type
No Lamp Module Included
IP Rating
IP66, IP67, IP69, IP69K
Lamp Module Voltage
Module Not Included
Color
Red
Type of Operator
Flush Button
Bezel Material
Metal
Lamp Voltage
Dependant on Module Used
Lamp Type
No Lamp Module Included
NEMA Rating
12, 13, 4, 4X
Series
XB4
Basic Material
Metal
Legend/Background Color
No Legend
Number of Indicator Lights
1
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Product Type
Push Button Operators
Hazardous Location Specification
Not Rated
Operator Material
Metal
Product Certifications
UL Listed || CSA || CCC || EAC
Device Short Name
ZB4F
Ik Degree Of Protection
IK06 IEC 50102
Shape Of Signaling Unit Head
round
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ambient Air Temperature For Operation
-40-70°C
Device Presentation
basic element
Overvoltage Category
class I IEC 60536
Electrical Composition Code
M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Ambient Air Temperature For Storage
-40-70°C
Mechanical Durability
500000 cycles
Electrical Shock Protection Class
class I IEC 60536
Product Compatibility
universal LED
Protective Treatment
TH
Operator Profile
red flush, unmarked
Head Type
built-in-flush
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Product Or Component Type
head for illuminated push-button
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

Description

Flush Push Button, 30 mm, Maintained, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Red, NEMA Rating 12, 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Legend/Background Color No Legend
