  15. Head for selector switch, Harmony XB5, flush mounted black long handle 2 pos stay put

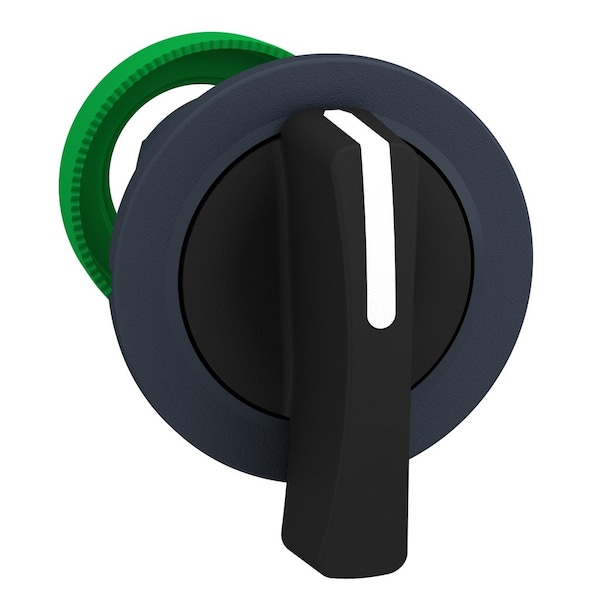

Schneider Electric Head for selector switch, Harmony XB5, flush mounted black long handle 2 pos stay put ZB5FJ2 - main

Head for selector switch, Harmony XB5, flush mounted black long handle 2 pos stay put

  • Mfr # ZB5FJ2

  • Zoro # G7655796

product price: $19.85
/ea

Key Features

Height
37 mm
Width
37 mm
Standards
JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-1, JIS C8201-1
Bezel Material
dark grey plastic
Type of Operator
stay put
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5FJ2
Zoro #
G7655796
UPC #
-
Country of Origin
France

Dimensions

Height
37 mm
Width
37 mm
Mounting Diameter
30.5 mm
Cad Overall Depth
46 mm
Cad Overall Width
37 mm
Cad Overall Height
37 mm

Details

Item
Selector Switch 2 Pos Extended Knob
Standards
JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-1, JIS C8201-1
Bezel Material
dark grey plastic
Type of Operator
stay put
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Range of Product
Harmony XB5
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Head Type
built-in-flush
Product or Component Type
head for selector switch
Ip Degree of Protection
IP66 IEC 60529, IP67 IEC 60529, IP69K, IP69
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment
TH
Mechanical Durability
1000000 cycles
Ambient Air Temperature For Operation
-40-70°C
Ik Degree of Protection
IK03 conforming to IEC 50102
Operator Additional Information
non padlockable
Electrical Composition Code
C3 6 single front mounting, C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting
Overvoltage Category
class II IEC 60536
Shape of Signaling Unit Head
round
Operator Profile
black long handle
Operator Position Information
2 positions 90°
Ambient Air Temperature For Storage
-40-70°C
Nema Degree of Protection
NEMA 13, NEMA 4X
Device Short Name
ZB5
Type Of Operator
stay put
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
Ik Degree Of Protection
IK03 IEC 50102
Product Certifications
BV || GL || DNV || CSA || UL Listed || LROS (Lloyds register of shipping)
Product Or Component Type
head for selector switch
Shape Of Signaling Unit Head
round
Nema Degree Of Protection
NEMA 13 || NEMA 4X

Description

Selector Switch 2 Pos Extended Knob
