Shop SCHNEIDER ELECTRIC

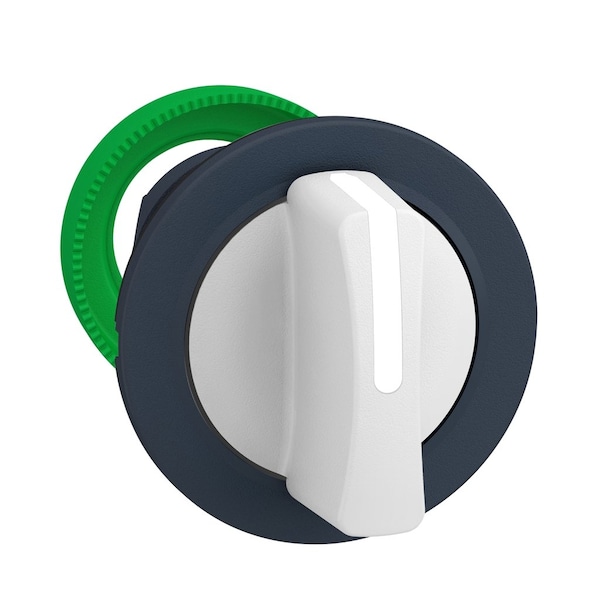

Head for selector switch, Harmony XB5, flush mounted white 3 pos return center

  • Mfr # ZB5FD501

  • Zoro # G7655893

product price:  $21.89
/ea

Key Features

Height
37 mm
Width
37 mm
Standards
UL 508, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, JIS C8201-1
Bezel Material
dark grey plastic
Type of Operator
to centre spring return
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB5FD501
Zoro #
G7655893
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Height
37 mm
Width
37 mm
Mounting Diameter
30.5 mm
Cad Overall Height
37 mm
Cad Overall Width
37 mm
Cad Overall Depth
46 mm

Details

Item
White Selector Switch 3 Pos
Standards
UL 508, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, JIS C8201-1
Bezel Material
dark grey plastic
Type of Operator
to centre spring return
Ambient Air Temperature For Operation
-40-70°C
Protective Treatment
TH
Product or Component Type
head for selector switch
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Range of Product
Harmony XB5
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Shape of Signaling Unit Head
round
Head Type
built-in-flush
Device Short Name
ZB5
Ip Degree of Protection
IP66 IEC 60529, IP67 IEC 60529, IP69K, IP69
Mechanical Durability
1000000 cycles
Ik Degree of Protection
IK03 conforming to IEC 50102
Operator Profile
white standard handle
Electrical Composition Code
C3 6 single front mounting, C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, SF1 3 single front mounting
Nema Degree of Protection
NEMA 13, NEMA 4X
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Position Information
3 positions +/- 45°
Overvoltage Category
class II IEC 60536
Product Or Component Type
head for selector switch
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Type Of Operator
to centre spring return
Ik Degree Of Protection
IK03 IEC 50102
Shape Of Signaling Unit Head
round
Product Certifications
CSA || DNV || GL || LROS (Lloyds register of shipping) || BV || UL Listed
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69

Description

White Selector Switch 3 Pos
