Item

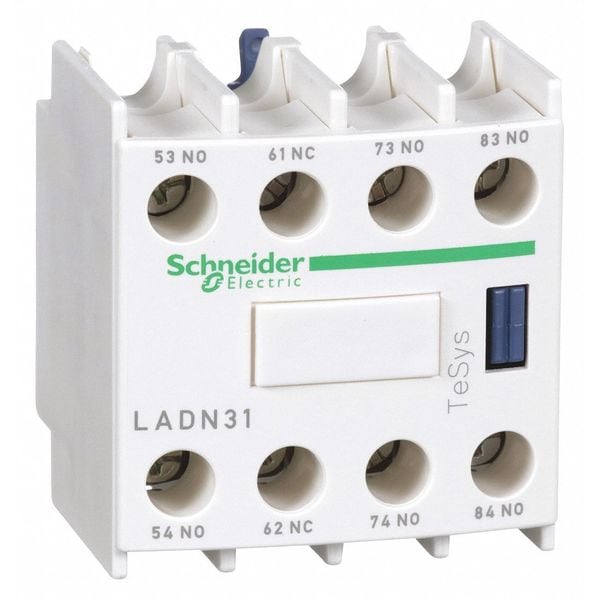

Auxiliary Contact Block
Number of NO Aux. Contacts
3
Number of NC Aux. Contacts
1
For Use With
Schenider LC1F Contactors
Max. Contact Blocks (No.)
1
Standards
EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, CB, CCC, EAC, UKCA
Features
Mercury Free, Toxic Heavy Metal Free
Compatible with Series
TeSys, TeSys Deca, TeSys F
Terminal Connection Type
Screw Clamp Terminals
Maximum Voltage Rating
690V AC
Number of Normally Closed Contacts
1
Number of Normally Open Contacts
3
Permissible Short-Time Rating
100 A 140°F (60°C) 1 s; 120 A 140°F (60°C) 500 ms; 140 A 140°F (60°C) 100 ms
Range Compatibility
TeSys D CAD; TeSys D LC1D; TeSys F LC1F; TeSys F CR1F; TeSys Deca CAD; TeSys Deca LC1D
Rated Insulation Voltage
690 V IEC 60947-5-1; 600 V UL; 600 V CSA
Ambient Air Temperature For Storage
-76 to 176°F (-60 to 80°C)
Tightening Torque
15.05 lbf.in (1.7 N.m) flat 6 mm; 15.05 lbf.in (1.7 N.m) Philips No 2; 15.05 lbf.in (1.7 N.m) pozidriv No 2
Conventional Free Air Thermal Current
10 A (at 140°F (60°C))
Rated Operational Voltage
690 V AC 25 to 400 Hz
Pole Contact Composition
3 NO + 1 NC
IP Degree Of Protection
IP2X conforming to IEC 60529
Non-Overlap Time
1.5 ms on de-energisation no overlap between NC and NO contact; 1.5 ms on energisation no overlap between NC and NO contact
Connections - Terminals
screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)rigid without cable end; screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)rigid without cable end
Product Certifications
CB; UL; CSA; CCC; EAC; UKCA
Rated Operational Current
6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13; 0.1 A at 600 V DC-13
Protective Treatment
TH IEC 60068
Insulation Resistance
Greater than 10 MOhm
Ambient Air Temperature For Operation
23 to 140°F (-5 to 60°C)
Contacts Operation
Instantaneous
IRMS Rated Making Capacity
140 A AC conforming to IEC 60947-5-1; 250 A DC conforming to IEC 60947-5-1
Minimum Switching Voltage
17 V
Operating Altitude
9842.52 ft (3000 m)
Minimum Switching Current
5 mA
Protection Type
GG fuse 10 A
Mechanical Durability
30 Mcycles
Environmental Characteristic
Normal environment
