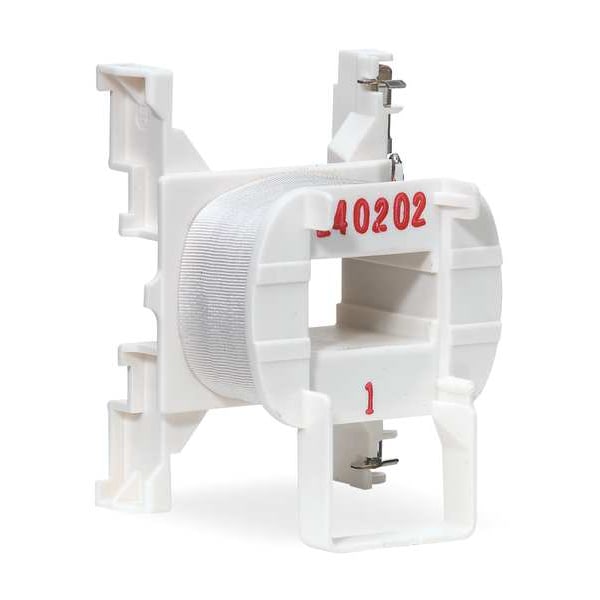

Schneider Electric IEC Contactor Coil LXD1T7 - main

IEC Contactor Coil

  • Mfr # LXD1T7

  • Zoro # G2340931

product price: $36.15
/ea

Key Features

Coil Volts
480V AC
For Use With
LC1D09, 12, 18, 25, 32
Hz
60
Contactor Type
IEC
Control Circuit Voltage Limits
drop-out 0.3 to 0.6 Uc 50/60 Hz 60 °C) || operational 0.8 to 1.1 Uc 50 Hz 60 °C) || operational 0.85 to 1.1 Uc 60 Hz 60 °C)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LXD1T7
Zoro #
G2340931
UPC #
785901467953
Country of Origin
France

Details

Item
Replacement Coil
Coil Volts
480V AC
For Use With
LC1D09, 12, 18, 25, 32
Hz
60
Contactor Type
IEC
Control Circuit Voltage Limits
drop-out 0.3 to 0.6 Uc 50/60 Hz 60 °C) || operational 0.8 to 1.1 Uc 50 Hz 60 °C) || operational 0.85 to 1.1 Uc 60 Hz 60 °C)
Coil Technology
without built-in suppressor module
[Uc] Control Circuit Voltage
480 V AC 50/60 Hz
Device Short Name
LXD1
Maximum Operating Rate
3600 cyc/h 60 °C
Ambient Air Temperature For Operation
-5-60 °C
Control Circuit Type
AC 50/60 Hz
Heat Dissipation
2-3 W 50/60 Hz
Average Resistance
2398 Ohm 20 °C
Inrush Power In Va
70-70 VA 60 Hz 0.75 20 °C) || 70-70 VA 50 Hz 0.75 20 °C)
Range
TeSys
Mechanical Durability
15 Mcycles
Product Or Component Type
contactor coil
Hold-In Power Consumption In Va
7.5-7.5 VA 60 Hz 0.3 20 °C) || 7-7 VA 50 Hz 0.3 20 °C)
Inductance Of Closed Circuit
87 H
Product Compatibility
LC1DT20 to DT40 || CAD || LC1D09 to D38
Compatible with Series
CAD Relays, LC1D09 to D38 Contactors, LC1DT20 to DT40 Contactors, TeSys Deca
Coil Power
70 VA
Frequency
50/60 Hz
Contactor Style
IEC
Coil Voltage
480V AC

Description

Replacement Coil, Coil Voltage 480V AC, NEMA Size Not Applicable, Compatible with Series CAD Relays, LC1D09 to D38 Contactors, LC1DT20 to DT40 Contactors, TeSys Deca, Contactor Style IEC, Coil Power 70 VA, Frequency 50/60 Hz
