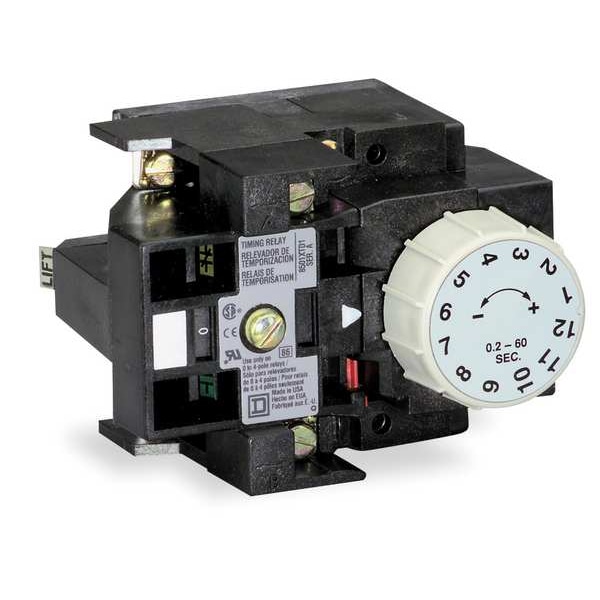

Timer Attachment

Mfr # 8501XTD1
Zoro # G0427235

$441.58

20% off

$352.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Mounts On Any 0 through 4-pole AC or DC Relay Except XMO Master Relay
Accessory Group A
For Electrical Connection Screw
Compatible Series 8501X, Class 8501
Maximum Time Delay 60 sec

See all product information

Brand Schneider Electric
MFR # 8501XTD1
Zoro # G0427235
UPC #
785901537359
Country of Origin Mexico
Category Replacement Coils

Details

Item	Off Delay Pneumatic Timer Attachment
Mounts On	Any 0 through 4-pole AC or DC Relay Except XMO Master Relay
Accessory Group	A
For Electrical Connection	Screw
Compatible Series	8501X, Class 8501
Maximum Time Delay	60 sec
Standards	CE Certified, CSA Certified, RoHS Compliant, UL Listed
Input Voltage	600V AC
Minimum Time Delay	0.2 sec
Number of Pieces	1
Timing Mode	Off Delay
Relay Type	control relay
Time Range	0.2 to 60 s
Product Or Component Type	timing relay
Product Certifications	UL recognized E78403 CCN NKCR2 \|\| CE \|\| CSA LR60905 class 3211 02
Tightening Torque	control circuit 1.02-1.36 N.m screw terminals
Time Delay Type	off-delay
Electrical Connection	screw clamp terminals
Contacts Type And Composition	1 NO/1 NC
Awg Gauge	AWG 18 to AWG 12 copper
Terminal Tightening Torque	Control circuit 9.03 to 12.04 lbf.in (1.02 to 1.36 N.m) screw terminals

Description

Off Delay Pneumatic Timer Attachment, Compatible Series 8501X, Class 8501, For Electrical Connection Screw, Minimum Time Delay 0.2 sec, Maximum Time Delay 60 sec, Timing Mode Off Delay, Input Voltage 600V AC, Number of Pieces 1, Standards CE Certified, CSA Certified, RoHS Compliant, UL Listed
